aegis EXP-AOC-4012 USB 3.1 C to C AOC fiber optic cable adopts advanced fiber optic technology to provide long-distance, high-speed and stable data and video transmission. It supports USB 3.1 Gen 2 with 10Gbps transfer speeds and DP 1.4 specification for 4K 60Hz video output. Lightweight, flexible and plug-and-play, it's ideal for high-speed external drives, 4K video transmission, data synchronization and other applications, making it the preferred choice for professionals, creators and advanced users.
* Cable Length ( aegis provides standard specifications and customizable length options )
EXP-AOC-4012：15m
◎ Supports USB 3.1 Gen 2 with 10Gbps transfer rate.
◎ Supports up to 4K 60Hz video output (DisplayPort Alternate Mode).
◎ Uses fiber optic technology for lossless long-distance transmission.
◎ Fiber optic transmission provides strong EMI resistance, ensuring stable data transfer.
◎ Plug-and-play, no drivers required for easy use.

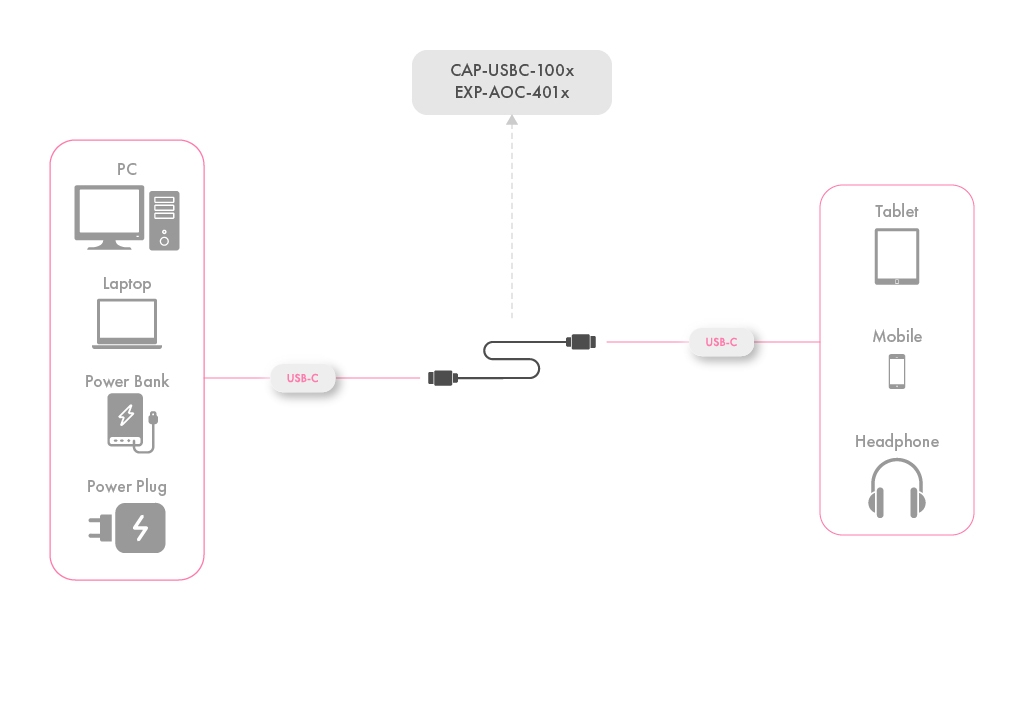

◎ Suitable for high-speed external drives, 4K video transmission, data synchronization and other applications.
◎ Backward compatible with USB 3.0/2.0.
| EXP-AOC-4012 Specification | |
| Video Input | USB Type-C |
| Video Output | USB Type-C |
| Video Version | DP 1.4 (2-lane) |
| Maximum Transmission Bandwidth | 10G |
| Maximum Digital Resolution | 4K60Hz 4;4;4 |
| Maximum Supported Color Depth | 24-bit True Color |
| HDRSupport | Yes |
| 3D VideoSupport | Yes |
| EDIDSupport | Yes |
| Audio Specifications | Dolby TrueHD、DTS-HD Master Audio |
| PDSupport | 20V/3A 60W |
| Connector Plating | gold-plated |
| Cable Outer Material | PVC |
| Cable Type | Hybrid cable, OM3 fiber optic and copper wire |
| Cable Outer Diameter | 4.5mm |
| Power Consumption | 1100mW (5V input) |
| Cable Length | 15M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
