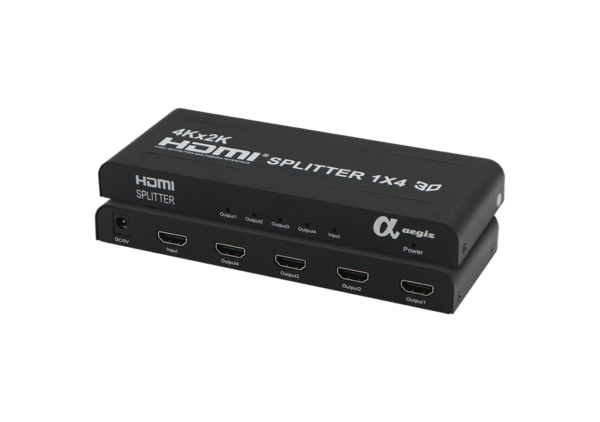

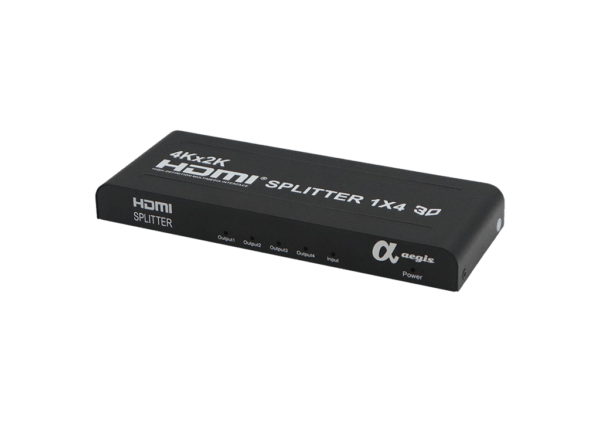

SPP-HDMI-1201
aegis’s SPP-HDMI-1201 HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theater system to the best effect. HDMI signal is distributed from source device to high definition display device.
aegis’s SPP-HDMI-1201 HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theater system to the best effect. HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
SPP series product options:
- Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device, such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
- Support high resolutions:480i/p,576i/p,720i/p,1080i/p,4Kx2K@25/30Hz.
- Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601
- Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
- Audio formats DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
- Extend the transmission distance and improve transmission signal.
- Compatible with DVI by using HDMI to DVI adapter.
- Plug- and -play.
- Metal casing design and overall shielding without signal interference.
- Led indicates signal and power mode.
- Support 3D
SPP-HDMI-1201
| Model No | SPP-HDMI-1201 |
| HDMI Source Input Port | 1 |
| Display Device Output Port | 4 |
| Source Port Connector | 19 PIN HDMI |
| Display Device Port Connector | 19 PIN HDMI |
| HDCP Compliant | YES |
| Single Link Range | 3840x2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Deep Color | 48 Bit |
| HDMI Version | HDMI1.4b |
| Bandwidth | Up to 340Mhz |
| Signal Speed | Up to 3.4Gbps |
| The length of input cable | 1080P≤20M,4k2k≤15M HDMI Cable |
| The length of output cable | 1080P≤20M,4k2k≤15M HDMI Cable |
| The cable standard | 26AWG HDMI1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption (max.) | 5Watts |
| Operation Temperature | 15℃ to +55℃ |
| Working Voltage | DC 5V |
| Power Adaptor | 5V 1A |
| Net Weight | 0.23Kg |
| Dimension: L*W*H(mm) | 178x67x23 |
