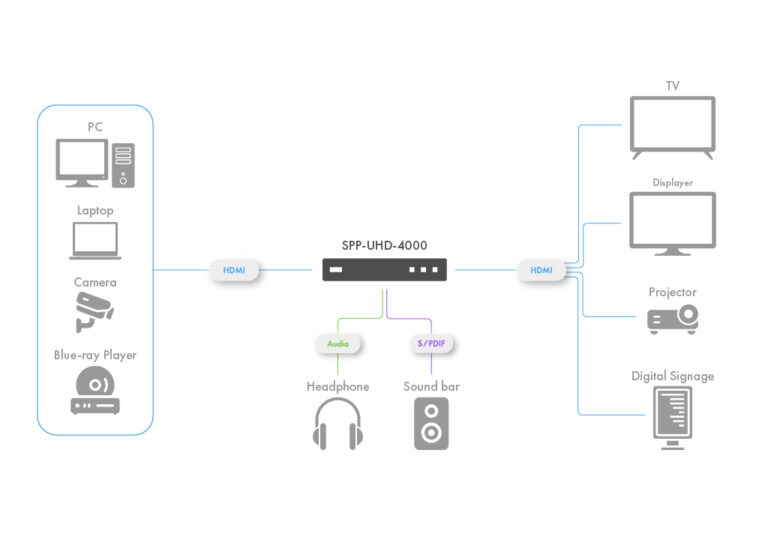

aegis SPP-UHD-4000是一款HDMI分配器，能將單一HDMI訊號完整分配至四組顯示裝置。採用18Gbps超高頻寬設計，支援4K60Hz (4:4:4) 高解析輸出，完整支援HDMI 2.0b規格。本產品具備音訊擷取功能，可透過光纖或類比輸出端子連接音響或擴大機等設備，並提供4K轉1080P視訊降頻功能，確保與各類顯示器的相容性。搭配智慧EDID管理系統，能自動優化或手動複製顯示設定，為多螢幕顯示系統提供便捷可靠的專業分配方案。
◎ 支援HDMI解析度高達4K60Hz (4:4:4)，符合HDMI 2.0b規格。
◎ Supports 18Gbps video bandwidth.
◎ Features audio extraction from HDMI signal to digital and analog outputs.
◎ Supports 4K to 1080P video down-scaling.
◎ EDID copy and auto mode selectable via front panel.
◎ Compatible with HDCP 2.2/1.4 standards.
◎ Full metal housing design.
◎ Supports multiple audio formats, including Dolby/DTS series.
| SPP-UHD-4000 Specification | |
| HDMI Compatibility | HDMI 2.0b |
| HDCP Compatibility | 2.2/1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 720P 50/60Hz 1080P 50/60Hz, 4K2K 24Hz 4K2K 30Hz,4K2K 50/60Hz (4:4:4) |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Output Ports | 4×HDMI Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Input Ports | 1×HDMI Type A [19-pin female] |
| Power Supply | Input: AC100~240V 50/60HzOutput: DC5V/1A(US/EU standards ，CE/FCC/UL certified) |
| Power Consumption | 3.5W – Max. |
| Material | Metal |
| Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity | 20~90% RH (non-condensing) |
| Dimensions | 180mm(W)×62mm(D)×14mm(H) |
| Weight | 277g |
