SPP-USBC-1001

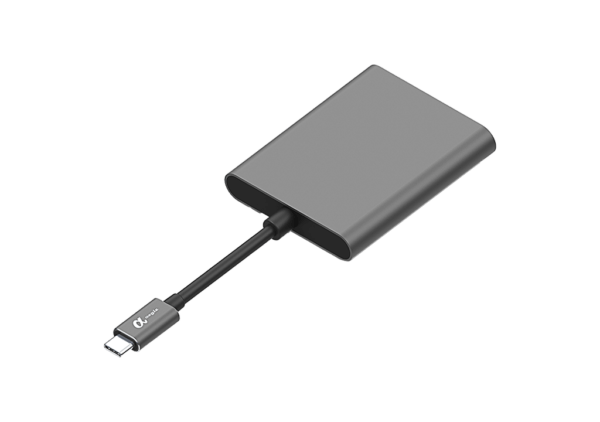

SPP-USBC-1001 is a USB-C to dual DisplayPort 4K splitter. This model can not only connect to any 4K DisplayPort video output but also Thunderbolt 3 port compatible. DisplayPort output port supports Single Stream Transport (SST), Multi-Stream Transport (MST) and High Dynamic Range (HDR) transport. This USB-C multiport adapter lets you turn your laptop into a powerful workstation, virtually anywhere you go, and eliminates the hassle of carrying and connecting many different port adapters.
aegis’ SPP-USBC-1001 expands the connectivity of your USB-C enabled laptop. This USB-C multiport adapter lets you turn your laptop into a powerful workstation, virtually anywhere you go, and eliminates the hassle of carrying and connecting many different port adapters. SPP-USBC-1001 adapter allows you to add 4K Ultra HD DisplayPort video output. It’s the ideal accessory for your MacBook Pro or other USB Type-C™ equipped laptop, and it’s also Thunderbolt 3 port compatible.
SPP series product options:
- Extend your system to 2 additional external displays via DisplayPort
- Support high resolution 4K Ultra HD DisplayPort video output
- Plug‘n Play, no additional power require.
- Support extended, mirror and video wall display modes
- Compatible with USB-C (Alt Mode) or Thunderbolt 3 port
- Support 1/2/4 lanes digital input, speed up to RBR (1.62-Gbps) / HBR (2.7-Gbps) / HBR2 (5.4-Gbps) / HBR3 (8.1-Gbps)
- VESA DisplayPort v1.4 compliant
- Support High Dynamic Range (HDR) transport
- Support Single Stream Transport (SST) or Multi-Stream Transport (MST) with Microsoft Windows system. Two output ports can be the same screen (SST) or extended screens (MST) through the Windows Setting configuration
**It does not support MST mode with Apple MacOS, only mirror function.**
SPP-USBC-1001
| Model No | SPP-USBC-1001 |
| Input Ports | USB Type-C x 1 |

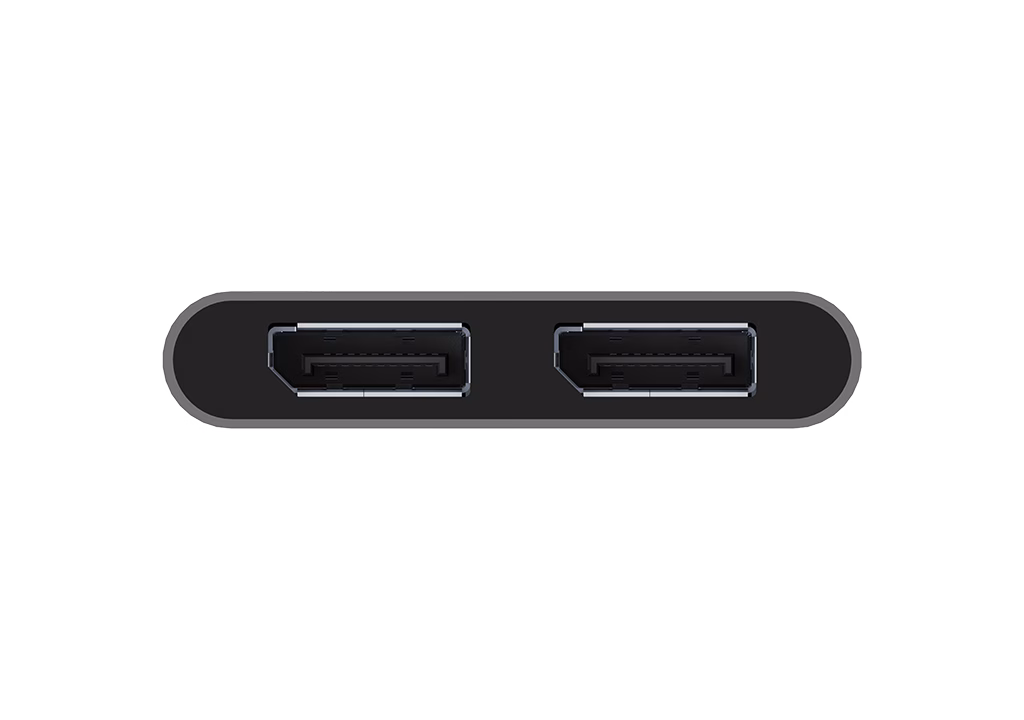

| Output Ports | DiplayPort x 2 |
| Resolution-Input | DP1.4&DP1.2 |
| Resolution-Output | DP1.4 / DP1: 4K2K/60Hz DP2: 4K2K/60Hz DP1.2 / DP1: 4K2K/30Hz DP2:X DP1: 4K2K/30Hz DP2: 4K2K/30Hz |
| Type-C Input | ‧ Support 1/2/4 lanes digital input, speed up to RBR (1.62-Gbps) / HBR (2.7-Gbps) / HBR2 (5.4-Gbps) / HBR3 (8.1-Gbps) ‧ VESA DisplayPort v1.4 compliant |
| HDMI Output | ‧ Support Single Stream Transport (SST) or Multi-Stream Transport (MST) ‧ Support High Dynamic Range (HDR) transport ‧ It does not support MST mode with Apple MacOS, only mirror function. ‧ It does support SST and MST mode with Microsoft Windows system. Two output ports can be the same screen (SST) or extended screens (MST) through the Windows Setting configuration |
| Operation Temperature | 32°F - 158°F (0°C - 70°C) |
| Storage Temperature | -22°F - 185°F (-30°C - 85°C) |
| Humidity | Operation: 20% - 80%RH Storage: 20% - 90%RH |
| Unit Number | Description |
| SPP-USBC-1000 | Type C to HDMI Splitter 1X2 4K/60hz SST MST |
| SPP-USBC-1001 | Type C to DP Splitter 1X2 4K/60hz SST MST |
| SPP-USBC-1002 | Type C to DP 1X3 4K/60hz SST MST |
