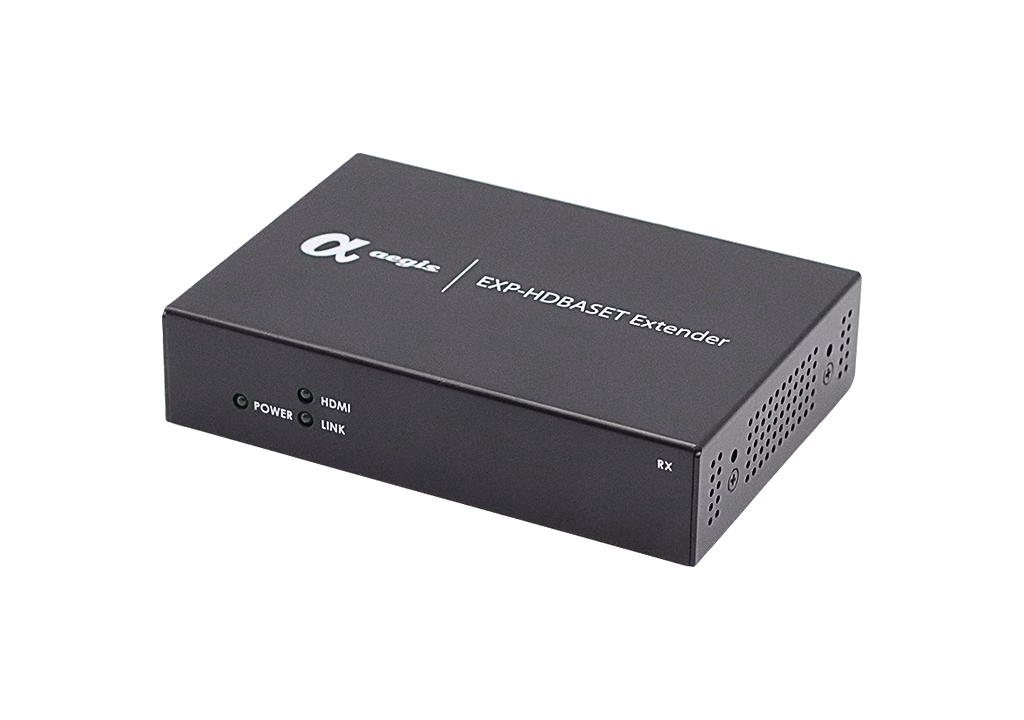

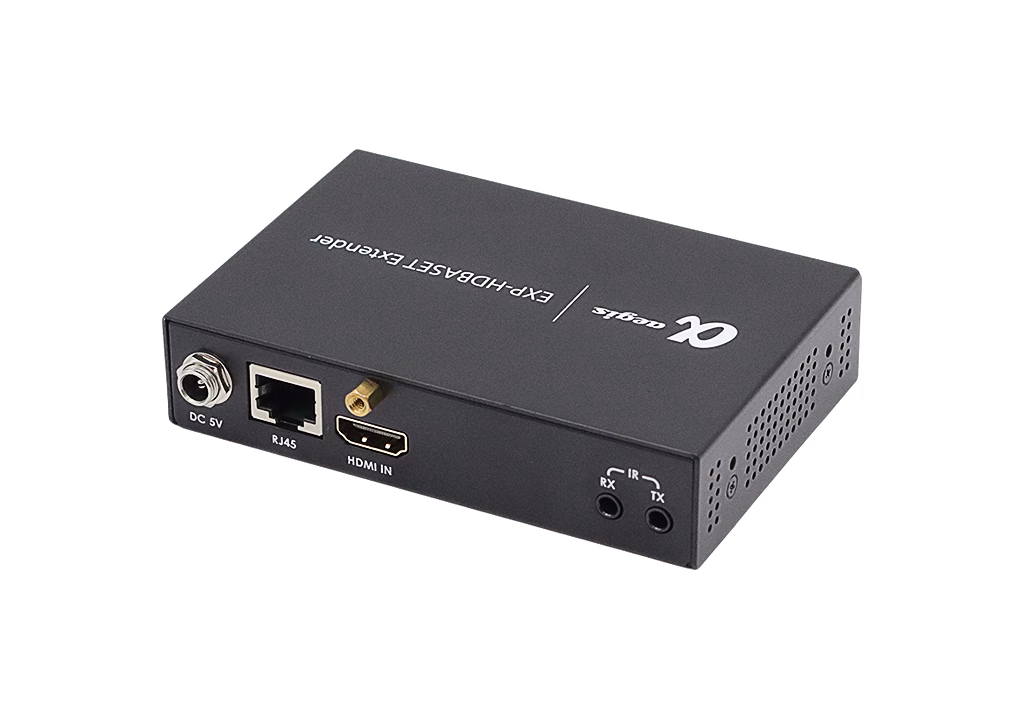

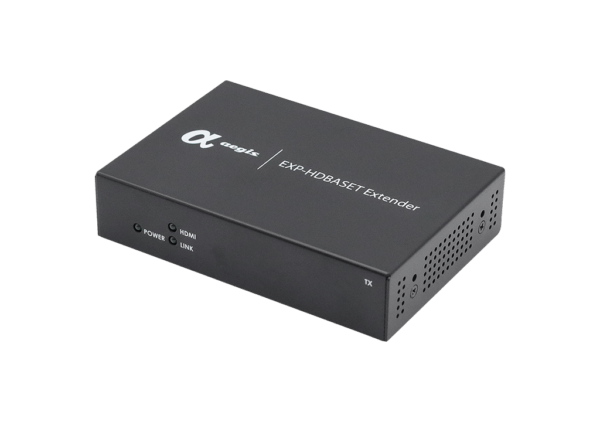

aegis這款1080P訊號延伸器是使用一條cat. 5e/6網路線傳輸HDMI1.4影音訊號，傳輸距離最遠可達60米，支援IR紅外線和4K/30Hz高畫質影像，影像色彩的逼真飽和度及無壓縮的技術為產品的特點。
HDBaseT系列產品成為在影音娛樂的畫面延伸、會議室或商用廣告應用上最符合成本效益的好選擇
HDMI Extender系列產品選項:
- 透過 Cat5e/6 支援 1080p@60Hz和3D，距離最遠可達60米，在Cat5e/6上支援 4K @ 24/25/30Hz (4:4:4) 和 4K/60 (4:2:0)距離最遠可延長40m
- 支援HDCP、CEC
- 支援雙向紅外線傳輸
- 支援所有數位音頻模式
| Product Model | EXP-HDBASET-100 | EXP-HDMI-7201 | EXP-DP-5000 | |
|---|---|---|---|---|
| Product Image | ||||
| Receiver: 112 X 76 X 25mm | Receiver: 110 X 75 X 24mm | Receiver: 110 X 75 X 24mm | ||
| Receiver: 270g | Receiver: 270g | Receiver: 270g | ||
| Audio | Audio | HDMI Audio format: Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM | HDMI Audio format: Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM | HDMI Audio format: Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM |
| Bandwidth | HDMI: 340MHz / 10.2Gbps | HDMI: 600MHz / 18.0Gbps | DP: 21.6Gbps HBR2 | |
| Baud Rate | Up to 115200 bps | Up to 115200 bps | Up to 115200 bps | |
| Cable Distance | 4K/30Hz Cat.6 40M(Max) | 4K/60Hz Cat.6 100M(Max) | 4K/60Hz Cat.6 100M(Max) | |
| Chassis Color | Black | Black | Black | |
| Chassis Material | Metal | Metal | Metal | |
| Consumption | 10 Watt Max | 10 Watt Max | 18 Watt Max | |
| Control Port | IR Blaster X 1 - 3.5mm IR Receiver X 1 - 3.5mm | IR Blaster X 1 - 3.5mm IR Receiver X 1 - 3.5mm RS232 X 1 - 3.5mm Transmitter: USB2.0 B X 1 Receiver: USB2.0 A X 2 (Keyboard and Mouse) | IR Blaster X 1 - 3.5mm IR Receiver X 1 - 3.5mm RS232 X 1 - 3.5mm Transmitter: USB2.0 B X 1 Receiver: USB2.0 A X 2 (Keyboard and Mouse) |
|
| HDCP Version | HDCP 2.2 | HDCP 2.2 | HDCP 1.3 | |
| Humidity | 5-85% RH (Non-Condensing) | 5-85% RH (Non-Condensing) | 5-85% RH (Non-Condensing) | |
| General | IR Frequency | 20~60 KHz Frequency | 20~60 KHz Frequency | 20~60 KHz Frequency |
| Environmental | Operation Temperature | 0°C - 40°C (32°F - 104°F) | 0°C - 40°C (32°F - 104°F) | 0°C - 40°C (32°F - 104°F) |
| Pack Dimension | (L) 247 X (W) 195 X (H) 90mm | (L) 247 X (W) 195 X (H) 90mm | (L) 247 X (W) 195 X (H) 90mm | |
| Package Weight | 1400g | 1400g | 1400g | |
| Power | DC 5V / 2.0 Amp | DC 5V / 2.0 Amp | DC 48V / 0.5 Amp | |
| Physical | Product Dimension | Transmitter: 112 X 76 X 25mm | Transmitter: 110 X 75 X 24mm | Transmitter: 110 X 75 X 24mm |
| Product Weight | Transmitter: 270g | Transmitter: 270g | Transmitter: 270g | |
| Receiver Input Ports | RJ45 X 1 (Cat6/6e/7) | RJ45 X 1 (Cat6/6e/7) | RJ45 X 1 (Cat6/6e/7) | |
| Receiver Output Ports | HDMI 1.4 X 1 | HDMI 2.0 X 1 | DisplayPort 1.2 X 1 | |
| Resolution | HDMI: Up to 1080P(60m) | HDMI: Up to 4K/60Hz | HDMI: Up to 4K/60Hz | |
| Storage Temperature | -15°C - 55°C (5°F - 131°F) | -15°C - 55°C (5°F - 131°F) | -15°C - 55°C (5°F - 131°F) | |
| Video | Transmitter Input Ports | HDMI 1.4 X 1 | HDMI 2.0 X 1 | DisplayPort 1.2 X 1 |
| Transmitter Output Ports | RJ45 X 1 (Cat6/6e/7) | RJ45 X 1 (Cat6/6e/7) | RJ45 X 1 (Cat6/6e/7) |
EXP-HDBASET-100 spec.
