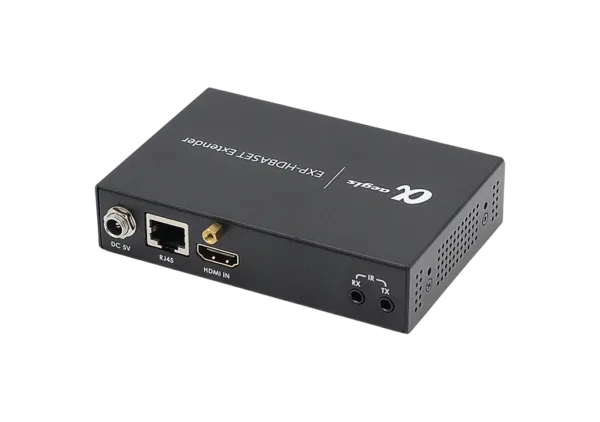

EXP-HDBASET-100

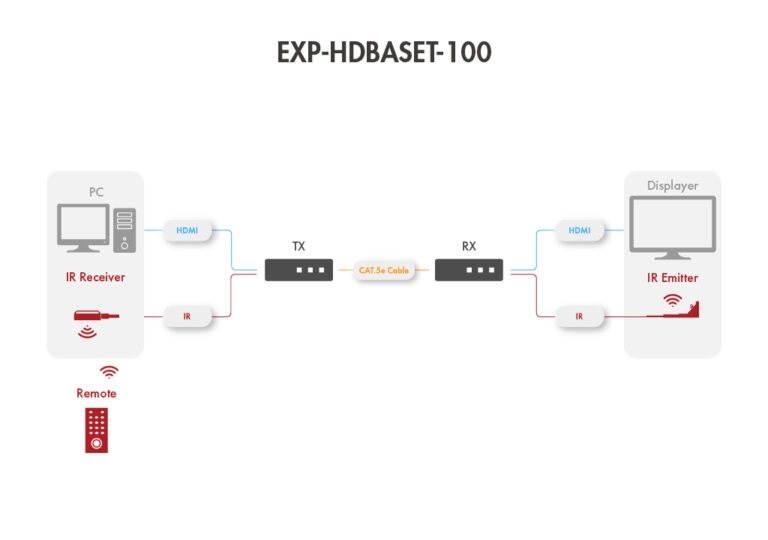

aegis EXP-HDBASET-100 HDMI extender provides reliable HDMI 1.4 audiovisual signal transmission over standard category 5e/6 cable, support up to 40 meters at 4K30Hz 4:4:4 or longer distribute distance to 60 meters for 1080p resolution. With uncompressed audio and video distribution technology, EXP-HDBASET-100 guarantee to deliver the best quality of the video per-frame. Bi-Directional IR allows control the sources from the sinks or vice versa, thus enhance the flexibility for users.

◎ Supports 1080p 60Hz and 3D via Cat5e/6, with transmission distance up to 60 meters.
◎ Supports 4K 24/25/30Hz (4:4:4) up to 40m over Cat5e/6.
◎ Supports HDCP and CEC.
◎ Supports bidirectional IR transmission.
◎ Supports all digital audio formats.

EXP-HDBASET-100 Specification
ModelEXP-HDBASET-100 TXEXP-HDBASET-100 RX
HDMI Bandwidth340MHz
HDMI Resolution720P/1080P(60m),4K30 4:4:4(40m),4k60 4:2:0(40m)
Audio FormatLPCM、DTS Digital, Dolby Digital
HDCP1.4/2.2
Input PortsHDMI x 1RJ45 x 1
Output PortsRJ45 x 1HDMI x 1
Control PortsIR Blaster x 1 – 3.5mmIR Receiver x 1 – 3.5mm
IR Frequency20-60Khz
Power Supply5VDC / 2.0 Amp
Power Consumption10W – Max.
Chassis MaterialMetal
Chassis ColorBlack
Operating Temperature0℃ – 40℃ / 32℉ – 104℉
Storage Temperature-20℃ – 85℃ / -4℉ – 185℉
Humidity0 – 95% RH (Non-Condensing)
Dimensions112 mm X 76 mm X 25 mm
Weight600 g
