AVP-EN1K-100

aegis AVP-EN1K-100 is a 1080P over IP encoder utilizing dual H.264/H.265 encoding technology, supporting 1080P 60Hz high-definition video processing. The device features an HDMI 1.3 input interface and enables audio-visual and control signal transmission through 1G networks. It supports LPCM stereo audio format and provides analog audio output. The system supports PoE power supply and 8×8 video wall configuration, offering comprehensive management tools.

Video
◎ Supports 1080P 60Hz H.264/H.265 encoding.
◎ Compatible with HDMI 1.3 and HDCP 1.4 standards.
◎ Supports up to 8×8 video wall configuration.
◎ Supports one-to-many, many-to-one, and many-to-many applications.
◎ Supports Unicast transmission mode.

Connectivity
◎ Supports 1G network interface transmission.
◎ Supports PoE power supply.
◎ Supports DHCP, static IP, and Auto IP configuration.

Audio
◎ Supports LPCM and MPEG4 AAC stereo.
◎ Features analog audio output.

Control
◎ Supports bidirectional RS232 communication.
◎ Compatible with AGS-TAP Lite Windows application.
◎ Compatible with AGS-TAP Lite Android application.

Transmission

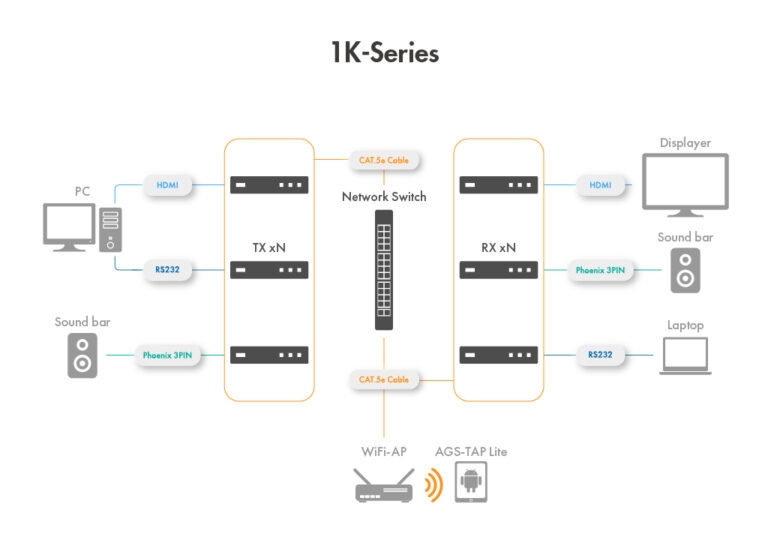

◎ Integrates video/audio/RS232 control signals transmission over IP networks.

AVP-EN1K-100 Specification
Video Input Ports1 x HDMI
Video Input TypeHDMI 1.3, HDCP 1.4
Video Input ResolutionUp to 1920×1080 60Hz
Video Input Signal0.5~1.2V p-p
Video Output Ports1 x LAN
Video Output TypeH.264/H.265
Video Output ResolutionUp to 1920×1080 60Hz
Audio Input Ports1 x HDMI
Audio Input FormatLPCM/stereo
Audio Output Ports1 x Phoenix connector;1 x LAN
Audio Output FormatMPEG4 AAC
Control MethodPC configurator (AGS-TAP Lite Windows Version).Android Tablet APP ( AGS-TAP Lite Android Version).
ESD ProtectionHuman body model:±8kV (air-gap discharge)±4kV (contact discharge)
Surge ProtectionVoltage: ±1kV
Power Supply12 V 1A DC
Power Consumption5W (Max.)
Product Dimensions175mm X 25mm X 100.2mm(L) 6.9in X (W) 0.98in X (H) 3.94in
Product Weight0.50kg / 1.1lbs
Operating Temperature0℃~45℃(32℉~113℉)
Storage Temperature-20℃~70℃(-4℉~140℉)
Humidity10% – 90% (Non-Condensing)

D a t a - S h e e t

U s e r - M a n u a l

S w i t c h - S e t u p

S o f t w a r - M a n u a l

Certification

Related Products

Cases

Video Wall Application in Corporate Buildings: Cross-Region Video Integration Solution

The aegis AV over IP offers an innovative solution for digital displays in commercial spaces, addressing the complexity of multi-screen management with flexible segmentation technology, IP distributed matrix technology, and an intuitive control system. It enhances information display efficiency while ensuring synchronized visuals, and provides high stability, ease of operation, and future scalability.

Surveillance System Integration Solution: The Path to Innovation for Telecom Building Control Centers

The aegis professional AV integration solution provides a comprehensive approach for modern corporate monitoring centers. Utilizing IP distributed matrix technology, it achieves seamless integration of multiple devices and employs projectors to enlarge and display visuals on walls. Equipped with Keypad control buttons, operators can effortlessly switch between screens, creating an intelligent security management environment for businesses.

Audio-Visual Upgrade Plan for Cram Schools: The Perfect Solution for Cross-Floor Synchronized Classrooms

In response to the increasing number of students in the cram school, the aegis AV over IP solution enabled real-time audio and video synchronization between the main classroom and the synchronized classrooms through distributed matrix technology. With features such as easy operation, stable audio-visual performance, and flexible scalability, teaching staff can effortlessly manage all devices via an iPad, ensuring a high-quality teaching experience.
