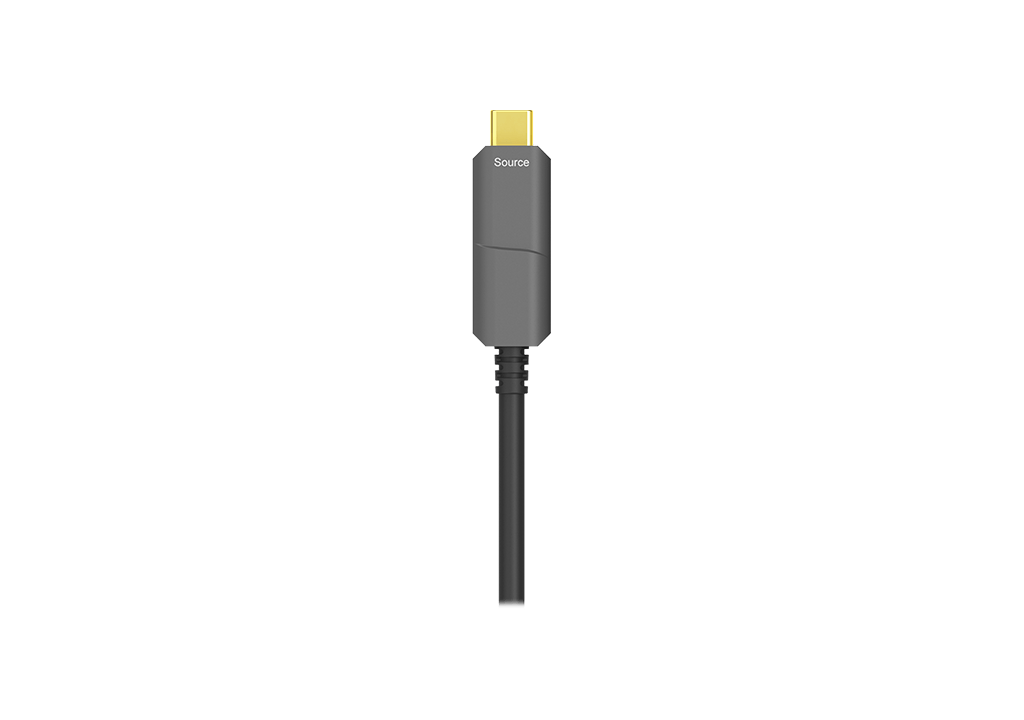

EXP-AOC-501x ( TypeC to HDMI® 2.0 )

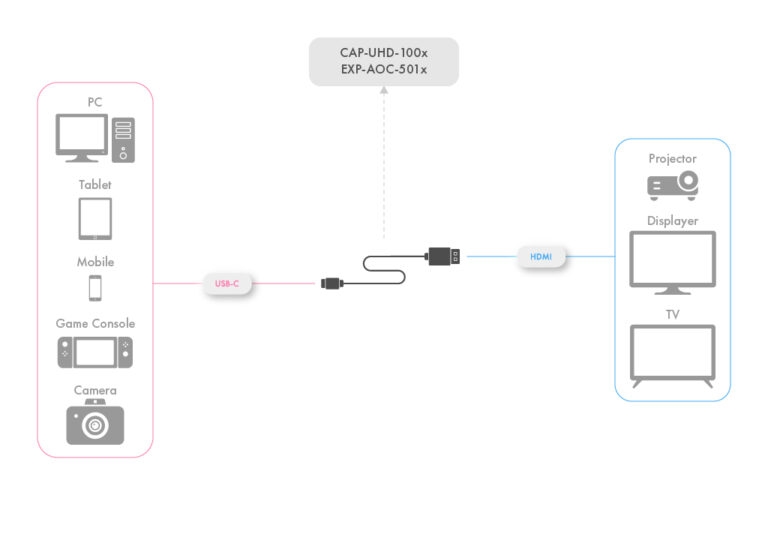

aegis EXP-AOC-501x USB-C 轉 HDMI® AOC 光纖線纜提供最高 30公尺的 4K 60Hz 高品質影像傳輸。採用光纖技術,確保穩定、完全無電磁干擾的傳輸,並完全符合 DisplayPort 1.2 和 USB-C DP Alt Mode 標準。此線纜是電腦、穿戴式裝置、電視、顯示器和投影機等高速影像應用的理想選擇,為高要求的影音市場提供成熟且具競爭力的解決方案。

* Cable Length ( aegis provides standard specifications and customizable length options )
EXP-AOC-5012:15m

◎ Supports 4K 60Hz ultra-high definition video.
◎ Supports multiple resolutions including 4K 30Hz, 1080p, 1080i, 720p.
◎ Supports HDR display, enhancing color depth and contrast.
◎ 支援HDMI® 3D畫面。
◎ Maximum supported length of 30 meters, with customizable length options.
◎ Utilizes fiber optic technology, ensuring zero RF interference, stable operation in complex environments.
◎ Compliant with DisplayPort 1.2 specifications, supporting DP Alternate Mode.
◎ Meets HDMI 2.0 standards.
◎ Supports HDCP 2.2 content protection.
◎ Fiber optic transmission ensures stable signal quality.
◎ Hybrid fiber-optic and copper cable structure.

EXP-AOC-501x Specification
Video InputUSB Type-C
Video OutputHDMI® Type-A
Video VersionDP1.2/ HDMI 2.0
HDCPCompatible with HDCP 2.2/1.4
EDID SupportYes
HDR/ 3D SupportYes
Maximum Transmission Bandwidth18G,
Maximum Digital Resolution4K60Hz
Audio SpecificationsDolby TrueHD、DTS-HD Master Audio、PCM
Connector Plating24K gold-plated
Cable Outer MaterialPVC/TPU (Custom)
Cable TypeHybrid cable, OM3 fiber optic and copper wire
Cable Outer Diameter4.5mm
Cable Length10M~30M
Operating Temperature0°C to 55°C (32°F to 122°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Warranty2 Year
