ACC-BTN-1000

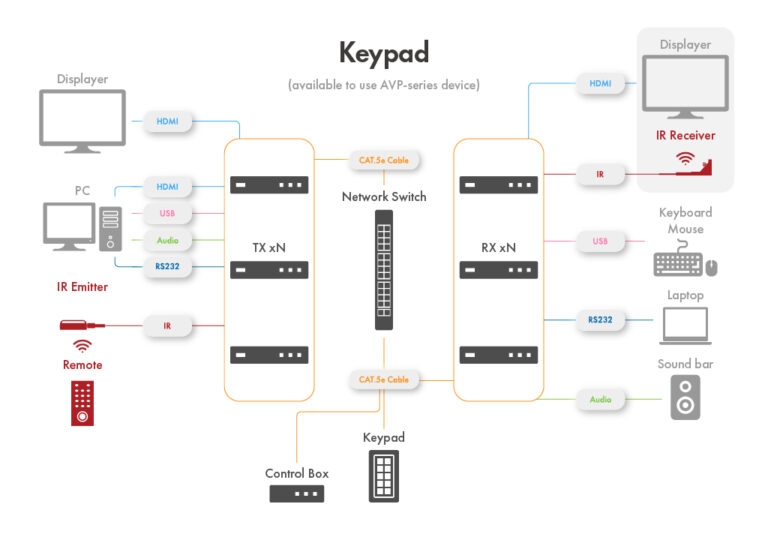

aegis ACC-BTN-1000 is a 10-button IP keypad controller that enables easy control of wall-mounted presentation switchers, matrices, and HDMI over IP solutions via TCP/IP or RS232 protocols. Supporting PoE power supply and featuring a single-module design, it can be flexibly installed on walls or desktops. With 10 customizable button settings, users can execute preset control commands with a single press to achieve scene switching and device control. Paired with an intuitive web interface, users can easily complete system configuration.

◎ 10 customizable programmable buttons.
◎ Supports PoE (Power over Ethernet).
◎ Supports TCP/IP network control.
◎ Supports RS232 serial control.
◎ Single-module compact design.
◎ Supports scene preset functions.
◎ Single-key multiple command trigger.
◎ Intuitive user interface design.
◎ Compatible with multiple device integration.
◎ Supports batch command execution.

ACC-BTN-1000 Specification
Input Interface1 x LAN(PoE) 10/100Mbps1 x RS2321 x DC
Buttons10 x Button
Control MethodWeb GUI
Operating Temperature / Humidity0°C ~ +45°C(32°F ~ 113°F)10% ~ 90%,No condensation
Storage Temperature / Humidity-20°C ~ +70°C (-4°F ~ 158°F)10% ~ 90%,No condensation
ESD ProtectionHuman Body Model (HBM):·      ±8kV (Air gap discharge)·      ±4kV (Contact discharge
Power SupplyDC 12V0.5A / PoE
Power ConsumptionMax 1.3W
Dimensions(W x L x D)45 x 105.6 x 36 mm
Net Weight0.18kg

D a t a - S h e e t

U s e r - M a n u a l

S w i t c h - S e t u p

S o f t w a r - M a n u a l

Certification

Cases

Video Wall Application in Corporate Buildings: Cross-Region Video Integration Solution

The aegis AV over IP offers an innovative solution for digital displays in commercial spaces, addressing the complexity of multi-screen management with flexible segmentation technology, IP distributed matrix technology, and an intuitive control system. It enhances information display efficiency while ensuring synchronized visuals, and provides high stability, ease of operation, and future scalability.

Surveillance System Integration Solution: The Path to Innovation for Telecom Building Control Centers

The aegis professional AV integration solution provides a comprehensive approach for modern corporate monitoring centers. Utilizing IP distributed matrix technology, it achieves seamless integration of multiple devices and employs projectors to enlarge and display visuals on walls. Equipped with Keypad control buttons, operators can effortlessly switch between screens, creating an intelligent security management environment for businesses.

Audio-Visual Upgrade Plan for Cram Schools: The Perfect Solution for Cross-Floor Synchronized Classrooms

In response to the increasing number of students in the cram school, the aegis AV over IP solution enabled real-time audio and video synchronization between the main classroom and the synchronized classrooms through distributed matrix technology. With features such as easy operation, stable audio-visual performance, and flexible scalability, teaching staff can effortlessly manage all devices via an iPad, ensuring a high-quality teaching experience.
