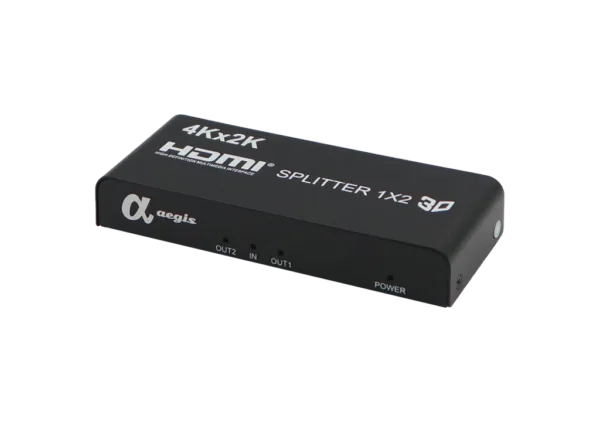

The aegis SPP-HDMI-1200 High-Definition Splitter delivers a professional-grade HDMI signal distribution solution, seamlessly duplicating a single HDMI source to two display devices with zero signal loss.Compatible with DVD players, satellite receivers, set-top boxes, and cameras, this splitter ensures synchronized output across multiple HD screens, making it ideal for multi-screen display applications in both home and professional environments.
◎ Fully compliant with HDMI 1.4 specifications.
◎ Supports high resolutions: 480i/p, 576i/p, 720i/p, 1080i/p, 4Kx2K 25/30Hz.
◎ Supports 30/36-bit deep color and expanded color spaces, including SYCC601, Adobe RGB, and AdobeYCC601.
◎ Compatible with Blu-ray DVD 24/50/60fs, HD-DVD, and xvYCC.
◎ Supports audio formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD.
◎ Extends transmission distance and enhances signal quality.
◎ Compatible through the use of HDMI to DVI adapter.
◎ Supports 3D.
| SPP-HDMI-1200 Specification | |
| HDMIHDMI Source Input Ports | 1 |
| Display Device Output Ports | 2 |
| Source Port Connectors | 19 PIN HDMI |
| Display Device Port Connectors | 19 PIN HDMI |
| HDCP Compliance | YES |
| Resolution | Up to 3840*2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Deep Color | 48 Bit |
| HDMI Version | HDMI1.4b |
| Bandwidth | Up to 340Mhz |
| Data Rate | Up to 3.4Gbps |
| Input Cable Length | 1080P≤20M,4k2k≤15M HDMI Cable |
| Output Cable Length | 1080P≤20M,4k2k≤15M HDMI Cable |
| Cable Standard | 26AWG HDMI1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption (Max) | 5Watts |
| Operating Temperature | -15℃ to +55℃ |
| Operating Voltage | DC 5V1A |
| Power Adapter | 5V 1A |
| Net Weight | 0.139Kg |
| Dimensions：L × W × H ( mm ) | 128x53x23.5 |
The aegis AV over IP offers an innovative solution for digital displays in commercial spaces, addressing the complexity of multi-screen management with flexible segmentation technology, IP distributed matrix technology, and an intuitive control system. It enhances information display efficiency while ensuring synchronized visuals, and provides high stability, ease of operation, and future scalability.
The aegis professional AV integration solution provides a comprehensive approach for modern corporate monitoring centers. Utilizing IP distributed matrix technology, it achieves seamless integration of multiple devices and employs projectors to enlarge and display visuals on walls. Equipped with Keypad control buttons, operators can effortlessly switch between screens, creating an intelligent security management environment for businesses.
In response to the increasing number of students in the cram school, the aegis AV over IP solution enabled real-time audio and video synchronization between the main classroom and the synchronized classrooms through distributed matrix technology. With features such as easy operation, stable audio-visual performance, and flexible scalability, teaching staff can effortlessly manage all devices via an iPad, ensuring a high-quality teaching experience.
