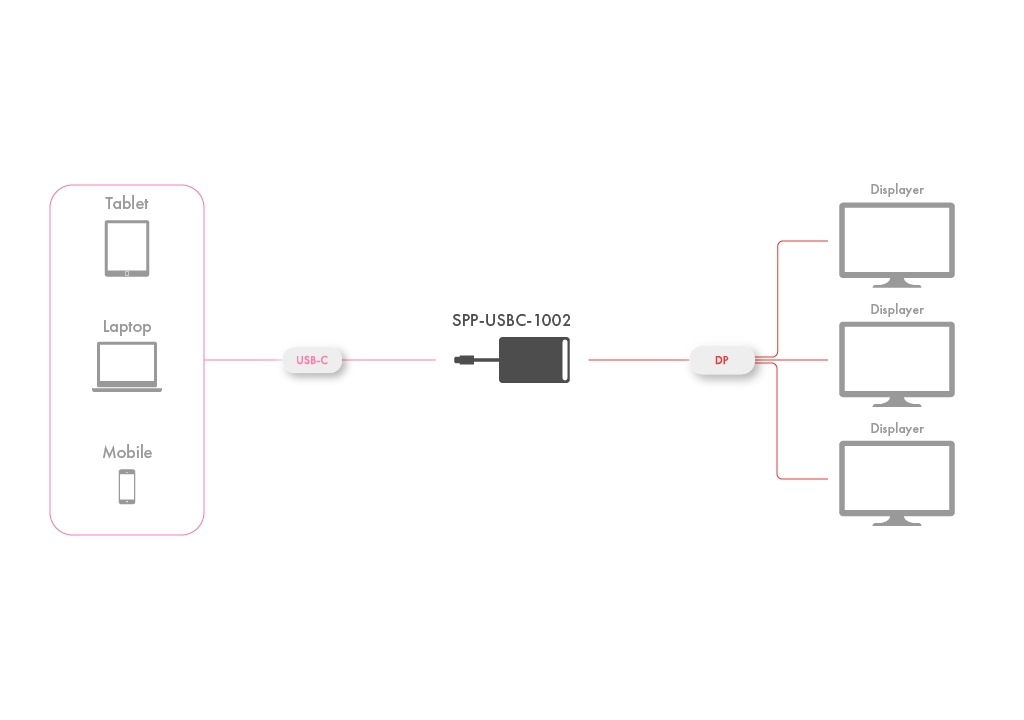

aegis SPP-USBC-1002 Multi-Function Expansion Adapter unlocks comprehensive connectivity for USB-C laptops. With a single USB-C port, it expands to three DisplayPort interfaces, perfectly supporting MacBook Pro and various USB Type-C laptops. It delivers 4K ultra-HD DisplayPort output and is fully compatible with Thunderbolt 3, instantly upgrading your laptop into a professional workstation.Designed with an all-in-one structure, it integrates multiple interfaces, eliminating the hassle of carrying multiple cables—a must-have mobile office solution for business professionals.
◎ Supports Single Stream Transport (SST) or Multi-Stream Transport (MST) for up to 4 display devices.
◎ For DP 1.4 source：
– 4K 60Hz resolution for single DP output when using 1 display.
– 4K 30Hz resolution for both DP outputs when using 2 displays.
– 1080P resolution for all three DP outputs when using 3 displays.
◎ Supports High Dynamic Range (HDR) transmission.
◎ MST mode is not supported on Apple macOS; only mirror mode is available.
◎ Supports SST and MST modes on Windows systems, allowing users to configure either three identical displays or a three-screen extended mode via the Windows display settings.
| SPP-USBC-1002 Specification | |
| Input Ports | Type C X 1 |
| Output Ports | DP1.4 X3 |
| Chassis Material | Metal |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -30°C to 120°C (-22°F to 248°F) |
| Humidity | 20%~80%RH |
The aegis AV over IP offers an innovative solution for digital displays in commercial spaces, addressing the complexity of multi-screen management with flexible segmentation technology, IP distributed matrix technology, and an intuitive control system. It enhances information display efficiency while ensuring synchronized visuals, and provides high stability, ease of operation, and future scalability.
The aegis professional AV integration solution provides a comprehensive approach for modern corporate monitoring centers. Utilizing IP distributed matrix technology, it achieves seamless integration of multiple devices and employs projectors to enlarge and display visuals on walls. Equipped with Keypad control buttons, operators can effortlessly switch between screens, creating an intelligent security management environment for businesses.
In response to the increasing number of students in the cram school, the aegis AV over IP solution enabled real-time audio and video synchronization between the main classroom and the synchronized classrooms through distributed matrix technology. With features such as easy operation, stable audio-visual performance, and flexible scalability, teaching staff can effortlessly manage all devices via an iPad, ensuring a high-quality teaching experience.
