4KPROIP-CAT-DE

4KPROIP-CAT-DE

aegis 4KPROIP series Supports UltraHD 4K/60 Hz (4:4:4) over a 10Gb Ethernet switch using standard CAT6 cables that source sent from HDMI can up to 100 meters. Delivering zero compression 4K and latency, the 4KPROIP provides supreme quality of audio and video outputs. As an alliance member of SDVoE, aegis 4KPROIP solution offers an easy and flexible distributions that bring multiple information sources to one or many displays.

aegis 4KPROIP series supports UltraHD 4K/60 Hz (4:4:4) over a 10Gb Ethernet switch using standard CAT6 cables that source sent from HDMI can up to 100 meters. Delivering zero compression 4K and latency, the 4KPROIP provides supreme quality of audio and video outputs. As an alliance member of SDVoE, aegis 4KPROIP solution offers an easy and flexible distributions that bring multiple information sources to one or many displays. The multi-point distribution functions includes: Matrix switching, Video Wall, MultiView and Point to Point. 4KPROIP also has IR controlling feature and RS232 serial port for giving commends over the network. 1Gb Ethernet port allows direct connect to control software device as a mobility feature. The USB 2.0 as an option feature that works as a KVM function over the network. 4KPROIP also supports wide range of up-scaling and down-scaling for resolutions up to 4K/60 (4:4:4).

The function of the 4KPROIP-CAT-DE decoder (Receiver) is to decoding the received information from 10G Ethernet traffic to be displayed. It strips off the encryption and reformates the audio and video information for display via HDMI video output while plays audio out from Audio output port.

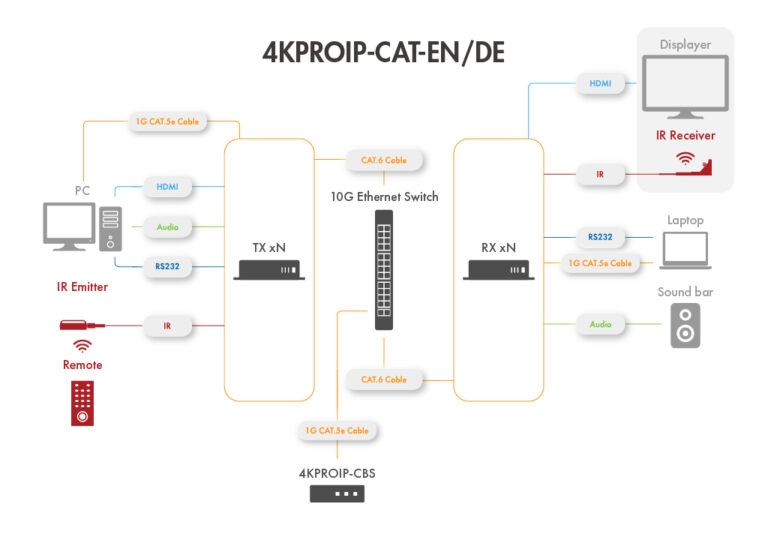

4KPROIP-CAT-DE provides streaming that carries 4K/60Hz (4:4:4) audio, video, IR, RS-232 over an IP network in one-to-one or many-to-many configurations with CAT6 cable that can up to 100M.

4KPROIP-CBS, the control of the 4KPROIP system, is also available.

4KPROIP series product options:
  • Zero Compression & Zero frame latency
  • Supports UltraHD 4K/60 (4:4:4), HDMI 2.0 & HDCP 2.2
  • 4K/60Hz Over 10G Copper
  • RS-232 Serial Port (Bidirectional)
  • IR (Bidirectional)
  • Scalable : wide range of down-scaling & up-scaling
  • 1Gb network port
  • Standard Industrial Cat.6 Cable up to 100M
  • Line Audio Out
  • Visual Capability : Matrix , Video Wall, MultiView, Point to Point

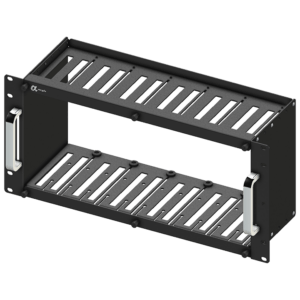

  • Rack & Under Table Mounting

4KPROIP-CAT-DE

Model NO4KPROIP-CAT-DE
Input Ports10G Ethernet: RJ45 Jack x 1
Infrared: 3.5mm Stereo Jack x 1 via Receiver
1G Ethernet: RJ45 Jack x 1
Power: Locking DC Jack x 1
Output PortsVideo: HDMI Jack x 1
Audio: 3.5mm Stereo Jack x 1
Infrared: 3.5mm Stereo Jack x 1 via Blaster
RS232: Phoenix 3 Pin Female x 1
HDMI VersionHDMI 2.0
HDCP VersionHDCP 2.2
ResolutionUp to 4KX2K/60Hz
Deep ColorUp to 36 bit
AudioHDMI: Up to 8 Channels (7.1)
Analog: 2.1 Channels (Input & Output)
Infrared20~60 KHz Frequency
RS232Up to 115.2kbps
DistanceUp to 100m / 328ft
Power100~240V, 12VDC / 2.0Amp.
Consumption24 Watt Max.
ProductDimension:
8.3in X 5.7in X 2.0in ( L X W X H )
210mm X 146mm X 52mm ( L X W X H )
Weight:
1.69 lb 760g
PackageDimension: 258mm X 198mm X 97mm
Weight: 1247g
TemperatureOperation: 32℉ - 104 ℉
0 ℃ - 40 ℃
Storage: 32℉ - 176 ℉
0 ℃ - 80 ℃
HumidityOperation: 20% - 90% (Non-Condensing)
Storage: 20% - 90% (Non-Condensing)
Package Content4KPROIP-CAT-DE Decoder X 1 PCS
Universal Power Adapter X 1 PCS
Infrared Blaster Cable X 1 PCS
Infrared Receiver Cable X 1 PCS
User Manual X 1 PCS
Unit NumberDescription

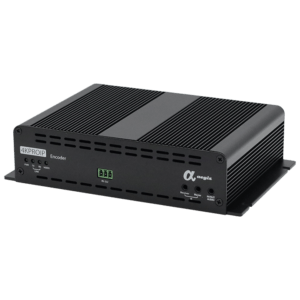

4KPROIP-CAT-EN4KPROIP Copper Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE
4KPROIP-CAT-DE4KPROIP Copper Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE
4KPROIP-CAT-EN-U4KPROIP Copper Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE & USB
4KPROIP-CAT-DE-U4KPROIP Copper Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE & USB
4KPROIP-FOC-EN4KPROIP Fiber Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE SFP+
4KPROIP-FOC-DE4KPROIP Fiber Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+
4KPROIP-FOC-EN-U4KPROIP Fiber Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+ & USB
4KPROIP-FOC-DE-U4KPROIP Fiber Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+ & USB

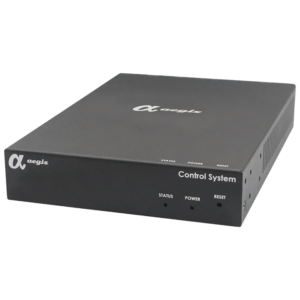

4KPROIP-CBSControl Software Box
