4KPROIP-CBS
aegis 4KPROIP-CBS is a configuration of control interface that is simple, user-friendly and makes managing all devices and displays in the 4KPROIP system easy and fast. It links 4KPROIP series encoders and decoders. The 4KPROIP-CBS was designed for intuitive configure with no complication.
4KPROIP-CBS delivers uncompressed, zero latency, digital video signals at up to 4k resolution, using standard Ethernet infrastructure. Based on the award winning SDVoE chip set, this revolutionary technology takes digital video signal management into the future.
4KPROIP-CBS is built for the Pro AV industry to satisfy the demands of routing hi-resolution 4K video to multiple destinations with every pristine detail of the original source. Audio, analog and embedded are catered for with embedding and de-embedding features. RS232 and IR control are also routed along side the video signal.It makes easy to define and control multiple displays with simple drag-and-drop user interface. Its functions include manage video and audio routing that allow users to create video walls, multiviews, and matrix functions set up fast.
A particular integrator friendly feature is complete break away switching of all signal types, video, audio, RS232 and IR, these can be routed independently to any destination.
It also features a built-in web server providing mobility of control via computers, notebooks or any other smart device with a network connection.

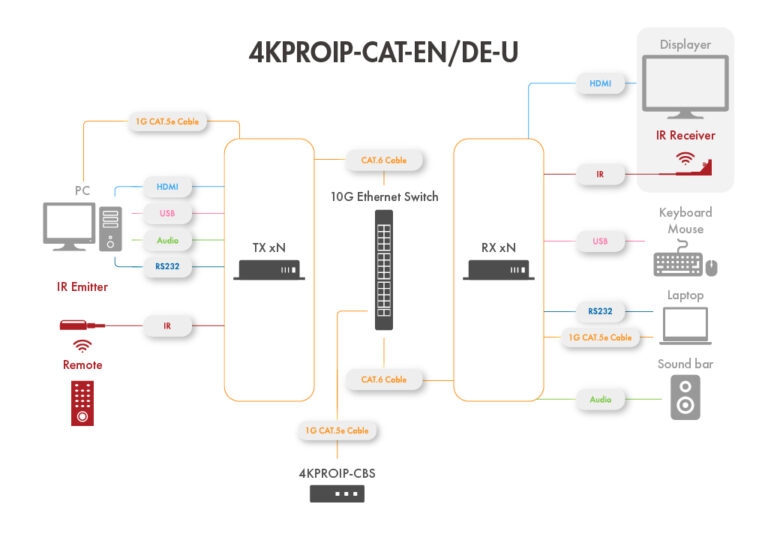

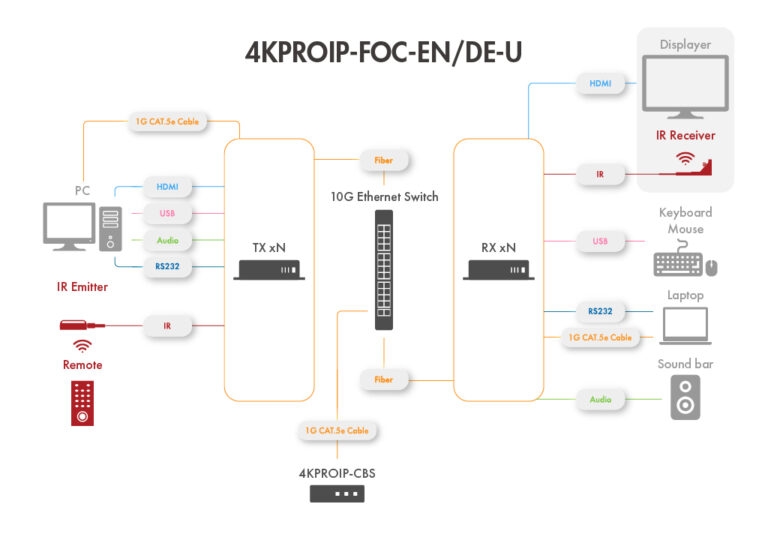

4KPROIP series product options:
- Superior SDVoE technology with Zero frame latency– Picture perfect image reproduction with identical timing
- Complete and independent audio, video and control matrix switching– Handles all typical signals found in Pro AV environment
- Unmatched I/O flexibility, one end point per source/display– Free yourself from fixed matrix sizes forever
- HDCP compliant- AES 128bit encrypted video delivery of protected content
- Video distribution using off the shelf 10GbE network switches– Trusted performance from switch companies like Cisco and Netgear
- Seemless switching– The only technology that can truly handle it
- 4K 60 HDR– The only technology that can truly handle it
- Built in broadcaster scaler– Accept and display any resolution to match all your displays
- Distributed video matrix with built in redundancy– No more centralised matrix frame to fail, only end points to hot swap out, no system down time
- Multi View– Display up to 32 images for high res 4K video collaboration
- Only one unit of 4KPROIP-CBS per 4KPROIP system
- Operates as a controller in the system
- Visual creation and manage : Matrix , Video Wall, MultiView, Point to Point
4KPROIP-CBS
| Model No | 4KPROIP-CBS |
| Features | Details |
| Interfaces | HDMI 2.0 / HDMI 1.4 / DVI 2.0 Pixel clock up to 594 MHz |
| Resolutions | All SD, HD, and other resolutions up to • 4K / 60Hz / RGB and 4:4:4 8 bit • 4K / 60Hz / 4:2:2 10 bit (HDR) • 4K / 60Hz / 4:2:0 10 bit (HDR) |
| Interfaces | All audio formats supported by HDMI 1.4 and HDMI 2.0, including: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD I2S stereo input and output up to 48 kHz 24-bit |
| Control Interfaces | • RS-232 (up to 115.2 kbaud) • Infrared • USB 2.0 (full device support, up to 480 Mbps) with 3rd party chipset • Gigabit Ethernet |
| Transmission Interfaces | 10 Gigabit XFI, IEEE 802.3 (RJ45 and SFP+) |
| Transmission Distance (Category Cable) | • Up to 100 meters on CAT6A or better for 4K / 60 Hz / 4:4:4 video • Up to 55 meters on CAT6 or better for 4K / 30 Hz / 4:4:4 video • Cat-X support requires a 3rd party 10GBaseT PHY |
| Transmission Distance (fiber) | Interchangeable, field replaceable SFP+ modules • Up to 300/550 meters with multi-mode OM3/OM4 fiber • Up to 30 km with single-mode fiber |
| Digital Content | 20~60 KHz Frequency |
| Digital Content Protection AV Processing Technology | HDCP 1.2 / HDCP 2.2 Compatible AptoVision Plethora• Broadcast quality up-scaling and downscaling • Colorspace and frame-rate conversion • Multi-source video compositing • Ultra-light compression, lossless for most content • Audio embedding and de-embedding • Audio down-mixing and re-sampling • Video-splitting and bezel correction |
| Synchronization Technology | AptoVision ACR (Automatic Clock Recovery) |
| Multi-Signal Streaming Technology | BlueRiver Channel Coder • Encoding multiple native signals into IP streams • Decoding IP streams into multiple native signals • Bidirectional, 10Gbps |
| Encryption | AES-128 |
| Operating Temperature | 0°C ~ +45°C (+32°F ~ +113°F), 10% to 90%, non-condensing |
| Storage Temperature | -20°C ~ +70°C (-4°F ~ +158°F), 10% to 90%, non-condensing |
| Humidity | 10% to 90%, noncondensing |
| Product Weight | ~1.5 Kg |
| Power Supply | 12V DC |
| Power Consumption | 15.24 W 16.24 W |
| Transport Distance | 30m with Cat6 cable 100m with Cat6a cable 100m with Cat7 cable |
| Dimensions | 139mm x 210mm x 35mm (L x W x H) |
| ESD Protection | Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge) |
