aegis 4KPROIP series supports UltraHD 4K/60 Hz (4:4:4) over a 10Gb Ethernet switch using standard CAT6 cables that source sent from HDMI can up to 100 meters. Delivering zero compression 4K and latency, the 4KPROIP provides supreme quality of audio and video outputs. As an alliance member of SDVoE, aegis 4KPROIP solution offers an easy and flexible distributions that bring multiple information sources to one or many displays. The multi-point distribution functions includes: Matrix switching, Video Wall, MultiView and Point to Point. 4KPROIP also has IR controlling feature and RS232 serial port for giving commends over the network. 1Gb Ethernet port allows direct connect to control software device as a mobility feature. The USB 2.0 as an option feature that works as a KVM function over the network. 4KPROIP also supports wide range of up-scaling and down-scaling for resolutions up to 4K/60 (4:4:4).

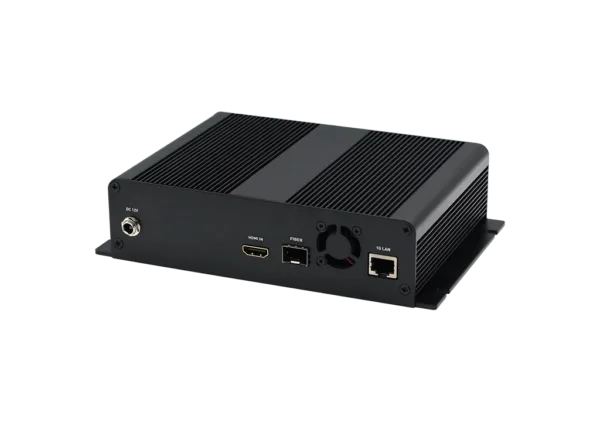

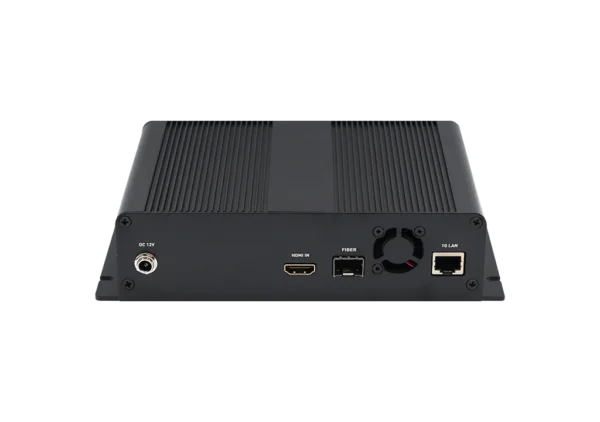

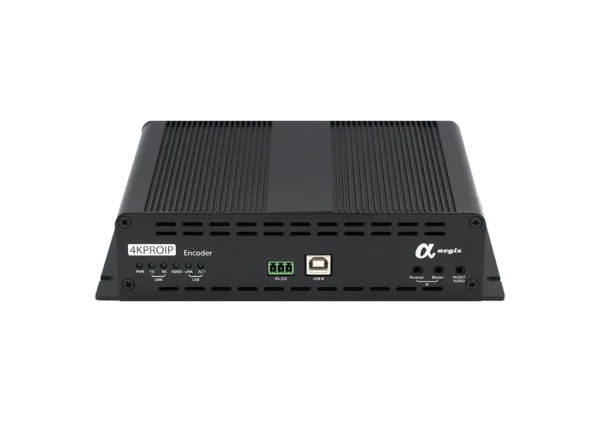

The function of the 4KPROIP-FOC-EN-U encoder (transmitter) is to receive audio and video data from variety of source interfaces and convert the data to a format suitable for transmission via 10Gbit network switch.
The video stream sent by an Encoder will only be received by designated control entity.
4KPROIP-FOC-EN-U provides streaming that carries 4K/60Hz (4:4:4) audio, video, IR, RS-232 and KVM features over an IP network in one-to-one or many-to-many configurations with Fiber that supports 10KM, 20KM, or 40KM range .
4KPROIP-CBS, the control of the 4KPROIP system, is available.
4KPROIP series product options:
- Zero Compression & Zero frame latency
- Supports UltraHD 4K/60 (4:4:4), HDMI 2.0 & HDCP 2.2
- 4K/60Hz Over 10G Copper
- RS-232 Serial Port (Bidirectional)
- IR (Bidirectional)
- Scalable : wide range of down-scaling & up-scaling
- 1Gb network port
- Fiber Cable supports 10KM, 20KM, or 40KM range
- Line In/Out Audio
- Visual Capability : Matrix , Video Wall, MultiView, Point to Point
- Rack & Under Table Mounting
- USB 2.0 Type B as KVM feature
