4KCHANGER-TC2
4KCHANGER-TC2 is a multi-format connectivity box that paired with HDMI extension of 30M AV transmission connected by Cat.6 , networking and USB charging in a conference room or classroom. With auto-detect source function, you can just press a button to switch outputs from 4 different input sources into a HDMI output. Its Ethernet port acts as passing-through connection.
4KCHANGER-TC2 is a multi-format connectivity box that paired with HDMI extension of 30M AV transmission connected by Cat.6 , networking and USB charging in a conference room or classroom. With auto-detect source function, you can just press a button to switch outputs from 4 different input sources into a HDMI output. Its Ethernet port acts as passing-through connection. It is easy to connect HDMI, Mini DisplayPort, VGA +3.5mm Audio, and Type-C to a HDMI display or projector. The box supports high-definition video resolution up to 4K@60Hz to ensure the quality of presenters’ presentation. It also has USB charging feature for charging mobile devices. As a table box, It is designed to be hidden inside the table that make the box nicely integrated into the table or podium surface; moreover, it also features with a stylish pop-up cover that hides ports when they’re not in use.
With no extension version, please check 4KCHANGER-TC1
4KCHANGER series product options:
- Accessibility : Allow 4 different inputs: Type-C, VGA+3.5mm Audio, Mini DP & HDMI
- Easy to switch : Auto Detect Source and Select Button functions
- Great AV presentation : support resolution up to 4K@60Hz
- Convenience : provide USB-A & USB-C charging
- Flexibility : for large room space, choice of adding 30M Ethernet cable (POC) to delivery of power and data transmission distance.
4KCHANGER-TC2
| Model No | 4KCHANGER-TC2 |
| Input Ports - Transmitter | Video: Mini DisplayPort Jack X 1 HDMI Jack X 1 VGA HD-15 Pin Jack X 1 USB 3.1 C Jack X 1 Audio: 3.5mm Stereo Jack X 1 Select: Push Button X 1 Ethernet: RJ45 Jack X 1 Power: Locking DC Jack X 1 |
| Output Ports | Video: RJ45 Jack X 1 Charging: USB-A Jack X 1 (BC 1.2) USB-C Jack X 1 |

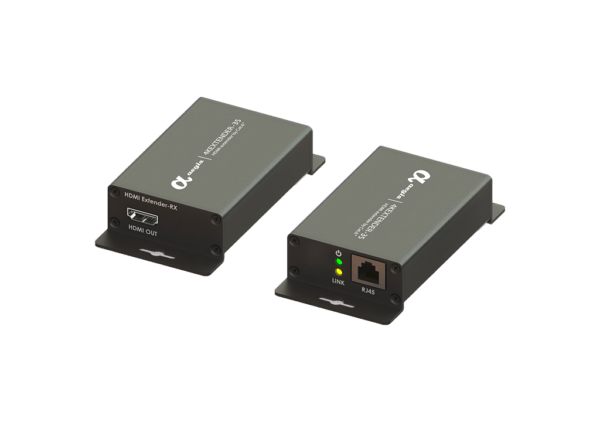

| Input Ports - Receiver | Video: RJ45 Jack X 1 |
| Output Ports | Video: HDMI Jack X 1 |
| HDMI Version | HDMI 2.0 |
| HDCP Version | HDCP 2.2 |
| DisplayPort Version | DP 1.2 |
| USB Version | USB 2.0 / USB 3.1 |
| Resolution | Up to 4KX2K/60Hz |
| Deep Color | Up to 12 bit |
| Audio | HDMI: 2.1 Channels Analog: 2.1 Channels |
| Distance | Up to 30m / 100ft |
| Power -Transmitter | 100~240V , 24VDC / 1.5Amp. |
| Consumption | 36 Watt Max. |
| Power -Receiver | POC |
| Transmitter | Dimension: 7.2in X 3.1in X 3.6in ( L X W X H ) 184mm X 80mm X 90mm ( L X W X H ) Weight: 1270g |
| Receiver | Dimension: 4.3in X 2.17in X 0.98 in ( L X W X H ) 110mm X 55mm X 24mm ( L X W X H ) Weight: 125g |
| Package | Dimension: 258mm X 198mm X 97mm Weight: 1487g |
| Temperature | Operation: 32℉ - 104 ℉ 0 ℃ - 40 ℃ Storage: 32℉ - 176 ℉ 0 ℃ - 80 ℃ |
| Humidity | Operation:20% - 90% (Non-Condensing) Storage:20% - 90% (Non-Condensing) |
| Package Content | 4KCHANGER-TC2 Transmitter X 1 PCS 4KCHANGER-TC2 Receiver X 1 PCS Universal Power Adapter X 1 PCS Template X 1 PCS Rear Ear and Screw X 2 Set Screw X 4 PCS User Manual X 1 PCS |
| Unit Number | Description |
| 4KCHANGER-TC1 | 4KCHANGER Table Connective with input of Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, switch button, single HDMI output |
| 4KCHANGER-TC2 | 4KCHANGER Table Connective with a Extender for distance extension and connection via 30M RJ45 Cat. 6 ; input : Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, switch button, single HDMI output |
| TAP-AV-1003 | 4KCHANGER Table Connective with input of Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, TOUCH PANEL, single HDMI output, Local Output, PoC; with an extender 60M |

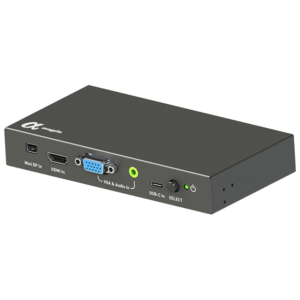

| TAP-AV-1004 | TABLE CONNECTIVITY (MDP/HDMI/VGA+3.5/USB TYPE C) NON RJ45 JACK with switch button, no cover lid, no extender box |
