4KCHANGER-TC1 (Multi-Function Signal Converter)

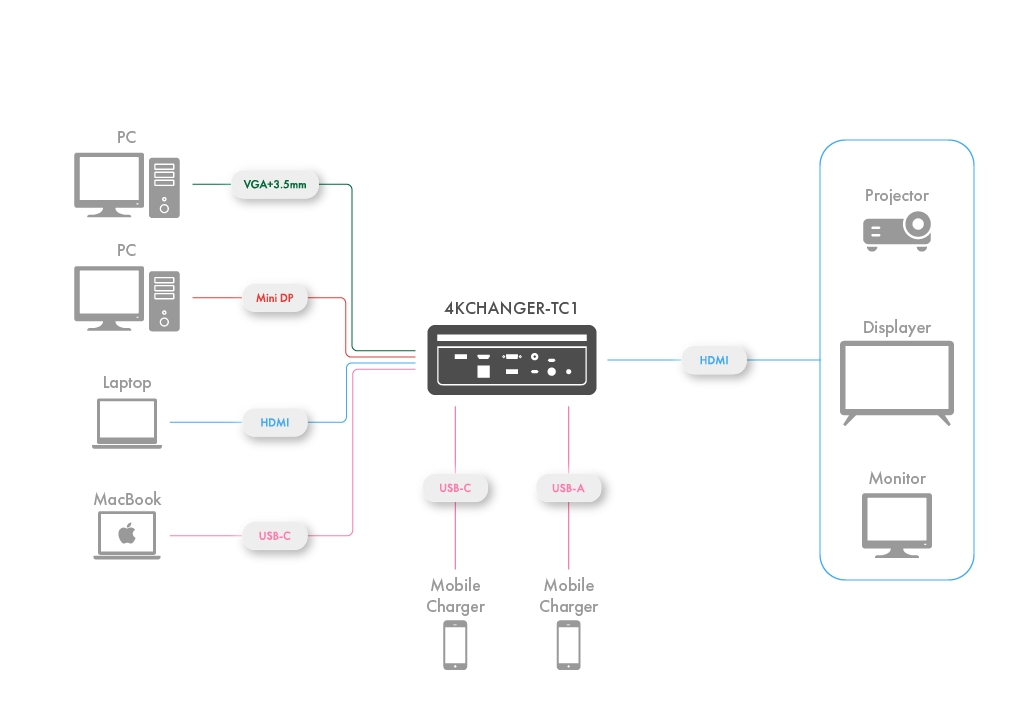

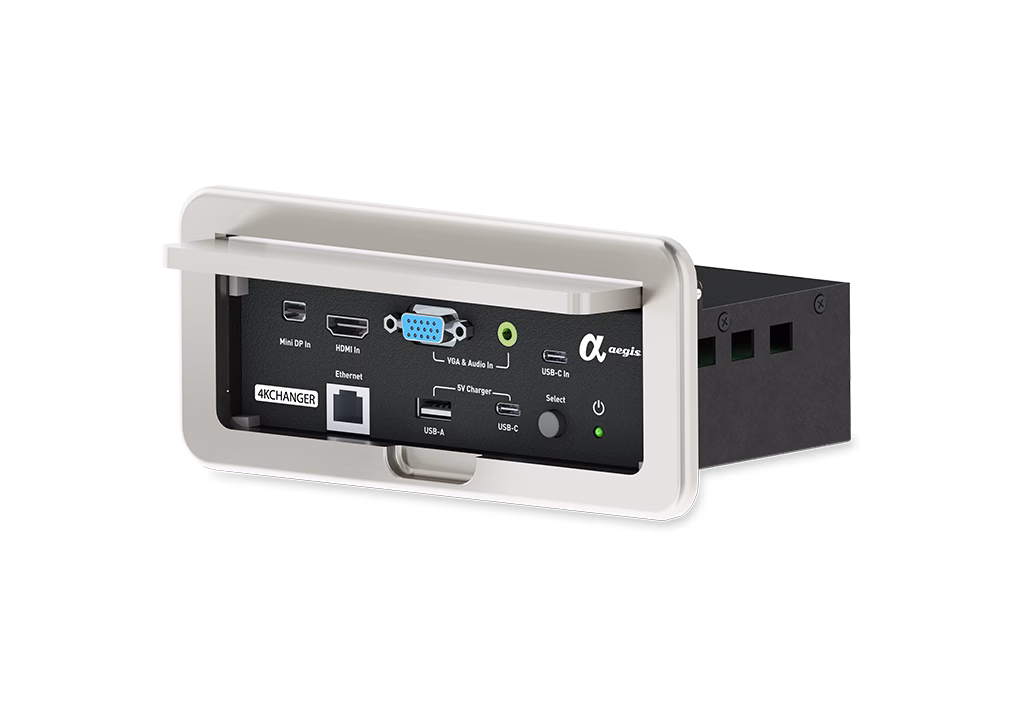

aegis 4KCHANGER-TC1 is a professional-grade multi-function pop-up desktop signal converter box. The system supports multiple video interfaces including HDMI, Mini DisplayPort, VGA, and Type-C, converting them to HDMI output with up to 4K 60Hz resolution. Featuring smart source auto-detection technology and one-touch switching, users can easily switch between four video sources. Its stylish pop-up design integrates seamlessly into desktops and offers Ethernet pass-through and USB charging capabilities, providing a complete solution for modern conference spaces.

◎ Supports Full HD 1080P 60Hz, 3D, and 4K 60Hz HDMI signal transmission.
◎ Features audio-video conversion technology, supporting uncompressed and zero-latency transmission of Mini DP, HDMI, VGA+3.5mm, and USB 3.1 Type-C audio-video signals.
◎ Supports USB 2.0 BC1.2 and USB 3.1 Type-C mobile device charging.
◎ Supports RJ45 passthrough functionality.
◎ Features smart video signal switching with auto-detection and button switching capabilities.
◎ Supports HDCP, CEC, and 24-bit deep color.
◎ Supports 4K 60Hz UHD signal extension up to 5M and 1080P 60Hz FHD signal extension up to 10M via HDMI 2.0 cable.
◎ Supports uncompressed LPCM audio and compressed audio formats including DTS-HD, Dolby TrueHD, and Dolby Digital.

4KCHANGER-TC1 Specification

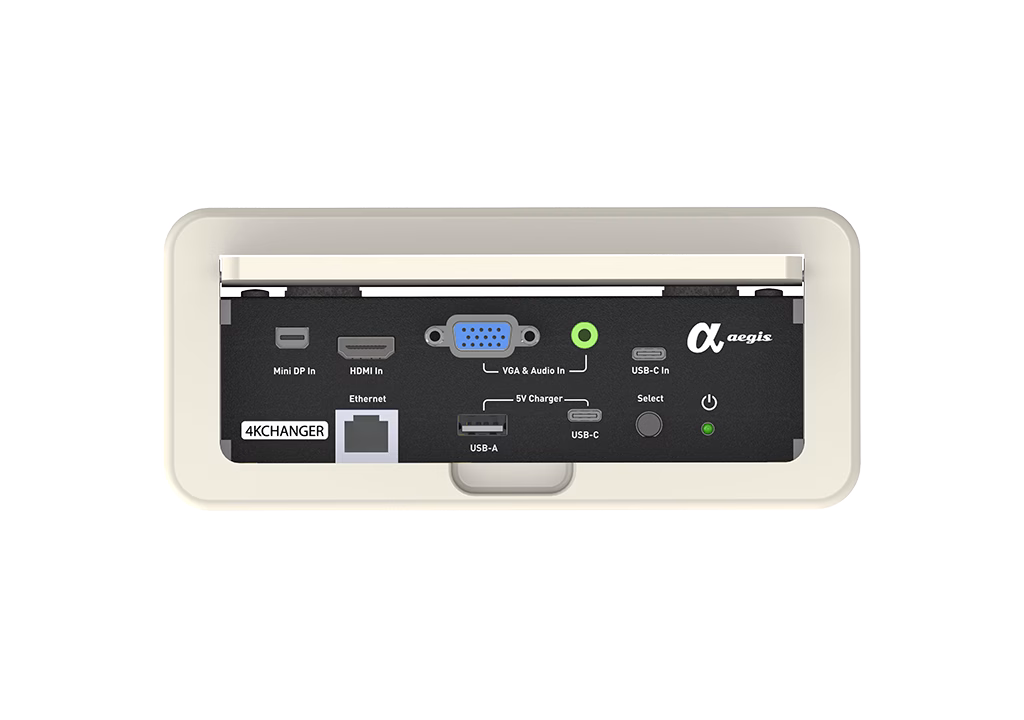

Input PortsMini DisplayPort X 1 HDMI X 1 VGA X 1 Audio X 1 -3.5mm Stereo Jack USB 3.1 C X 1 Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru)

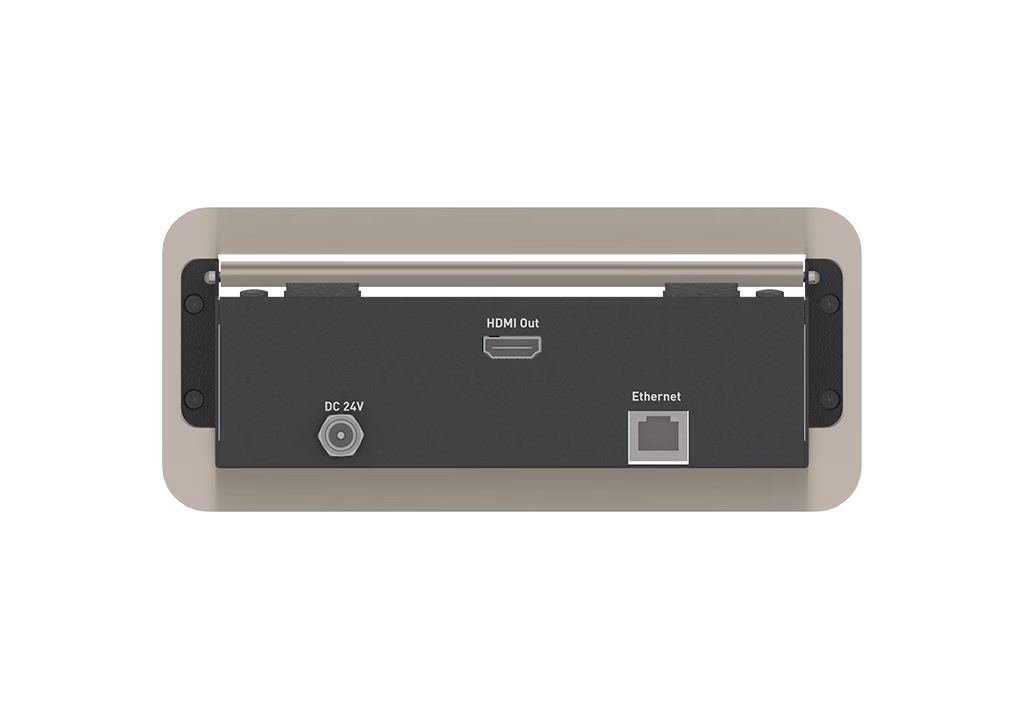

Output PortsHDMI X 1 USB 2.0 A X 1 -5V/ 1.5 Amp BC 1.2 USB 3.1 C X 1- 5V/ 2.0 Amp Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru)
Control PortsSelect button X 1 –
Power Supply24VDC / 1.5 Amp (US,UK,EU Power Plug)
Power Consumption36 W – Max.
Chassis MaterialMetal
Panel ColorSilver
Operating Temperature0℃ -40℃ / 32℉ -104℉
Storage Temperature-15℃ -55℃ / 5℉ -131℉
Humidity5 – 85% RH (Non-Condensing)
Dimensions ( L × W × H )7.2 in (184 mm) X 3.1 in (80 mm) X 3.6 in (90 mm)
Weight738 g
