aegis' 4K60 over IP series adopts JPEG2000 compression technology, encoder (AVP-EN6K-101), decoder (AVP-DE6K-101), IP controller (AVP-CBS2K-101) can provide a complete point-to-point video stream flow system. In the matrix system, audio and video streams, IR, USB, and RS232 are all transmitted over the network, and up to 16 x 16 displays are spliced into a video wall, and the highest resolution of 4K UHD (4K x 2K@60Hz) is supported. The system uses a 1Gbps switch and is powered by PoE. This solution can easily expand the system and maintain the flexibility of future planning. The encoder and decoder can perform basic matrix layout functions, such as adding an IP controller (AVP-CBS2K-101 ) can also control and arrange the TV wall and matrix wall from the Web GUI and iPad. 4K60 over IP provides a variety of control options, including RS232, IP controller (AVP-CBS2K-101), Windows software HDMIOverIPConsole (for system settings), and iPad application AGS-i TOUCH. According to the needs and budget control of the project, the required equipment and controllers can be purchased, so it also has very high control flexibility in terms of cost. In addition, the decoder supports CEC/RS232 control, which can directly control the power on and off of the display terminal or screen. Aegis' 4K60 over IP has become the best solution for many conference rooms, shopping malls, hotels, monitoring centers, schools, and corporate training environments.
AV over IP series product options:
- Transmit HDMI/RS232/infrared/USB signals via IP network.
- The encoder supports up to 4K UHD (4K x 2K@60Hz 4:4:4) resolution Max. Bit Depth per Color is 8 bit.
- HDMI Maximum Data Rate is 18Gbps; the format is RGB and YCbCr Digital Video.
- The decoder supports automatic up/down frequency -- it can output the video resolution suitable for the display according to the EDID of the display. The resolution supports the range from 480p@60Hz to 4K x 2K@60Hz.
- Provided two IP streams output.
- One mainstream is output to the decoder, supporting resolutions ranging from 480p@60Hz to 4K x 2K@60Hz.
- Another stream can be output to a third-party device for preview, supporting a resolution of 360 x 240@15Hz.
- Provide one RJ-45 port and one SFP optical fiber port.
- Provide S/PDIF digital audio port.
- Support up to 16 x 16 monitors to form a video wall.
- Provide API commands to facilitate the integration and management of third-party control systems, and support IP controller (AVP-CBS2K-101), PC setting software (HDMIoverIPConsole), and the application program AGS-i TOUCH on iPad and other control methods.
- Support RS232.
- Support IR function.
- Support USB 2.0 pass-through function from the decoder to the encoder (keyboard/mouse/touch screen only).
- Support cross-host roaming of the mouse pointer through the KVM function in special matrix mode. (see Mouse roaming settings for details)
- Support Audio(Analog Audio).
- Support both unicast and multicast modes (in unicast mode no need to configure the network switch).
- The encoder supports EDID import, and the decoder supports EDID export (EDID is transmitted from the display to the decoder).
- Support to control display terminal standby/power switch via CEC.
- When the signal source is not detected, the decoder can be controlled to turn off the output through the API.
- The decoder can receive the CEC command from the display terminal and report it to the IP controller.
- Support HDMI 2.0; HDCP 2.2/2.3; VESA; CEA-861F.
- Encoder average data rate 3840 x 2160@60Hz: about 650 Mbps.
- Support seamless switching.
- Support cross-host roaming of the mouse pointer through the KVM function in special matrix mode.
- Support Maintain Tool software update.
- Support PoE power supply function.
- Support Auto IP (zero configuration) – this product can automatically generate an IP address without connecting to a DHCP server.
- Support HTTP, TCP/IP, Telnet, UDP, IGMP, and other communication protocols.
- Support partition TV wall group management.
- Support heterogeneous splicing function.
- Fanless design.
- Support stand-alone RESET to restore the default value function, without affecting the operation of the whole area.

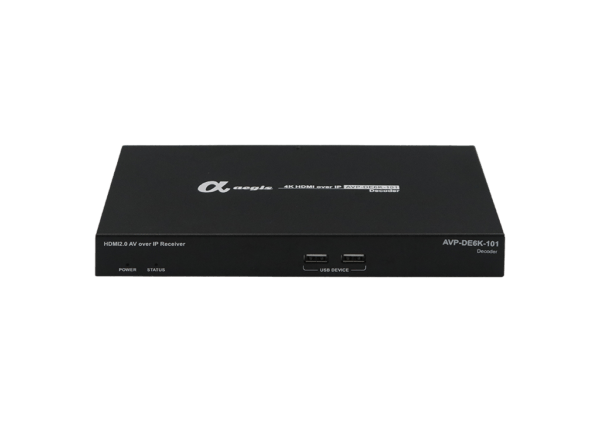

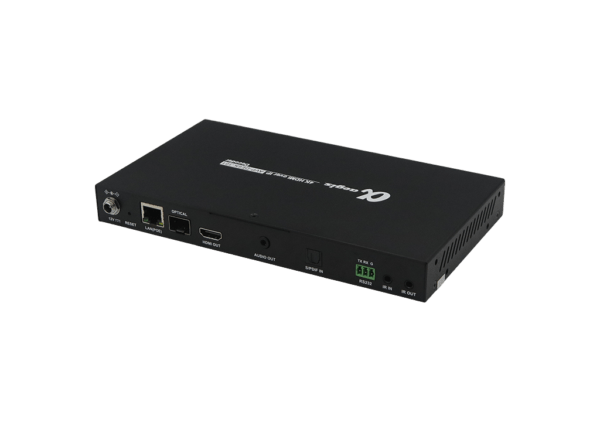

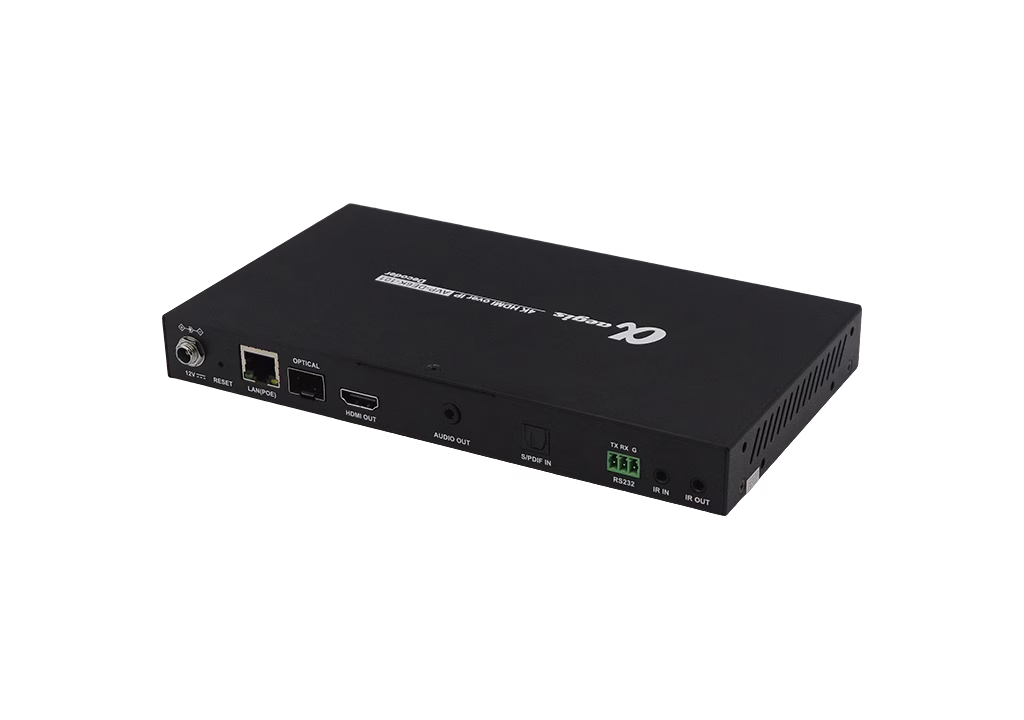

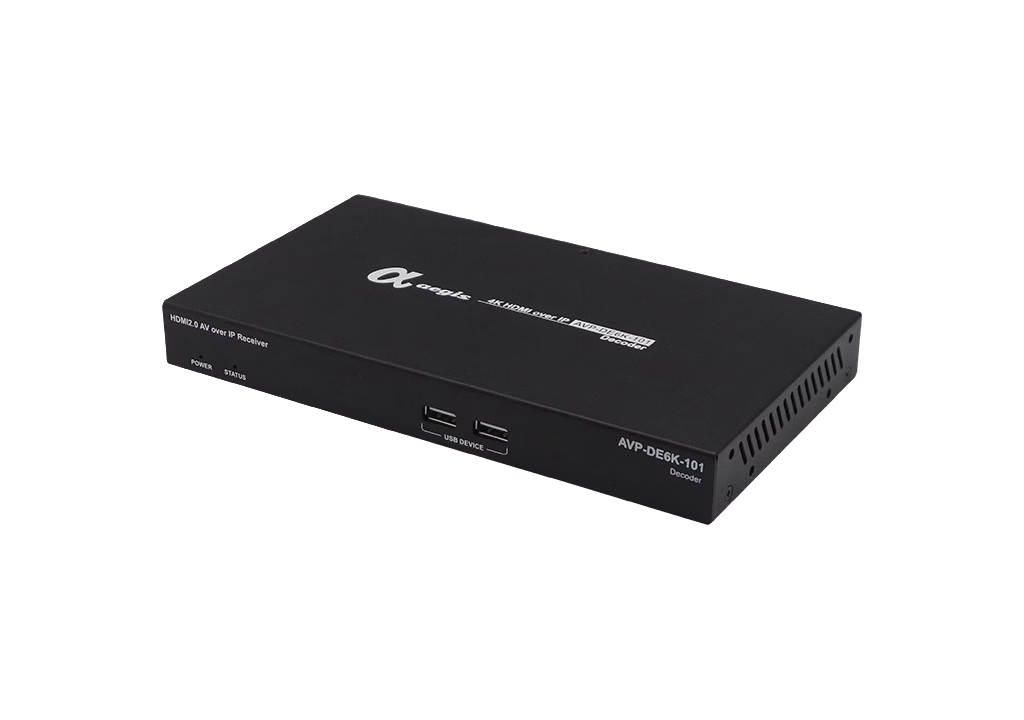

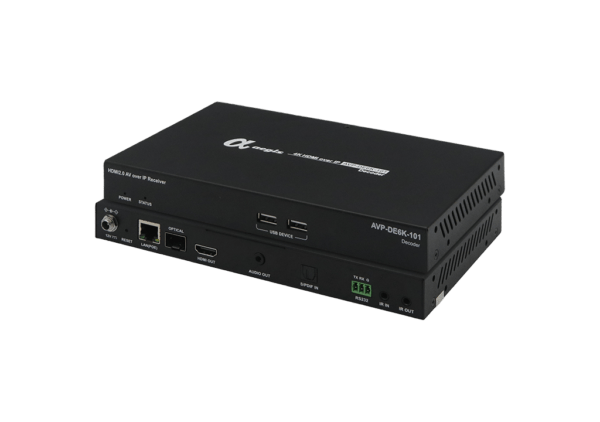

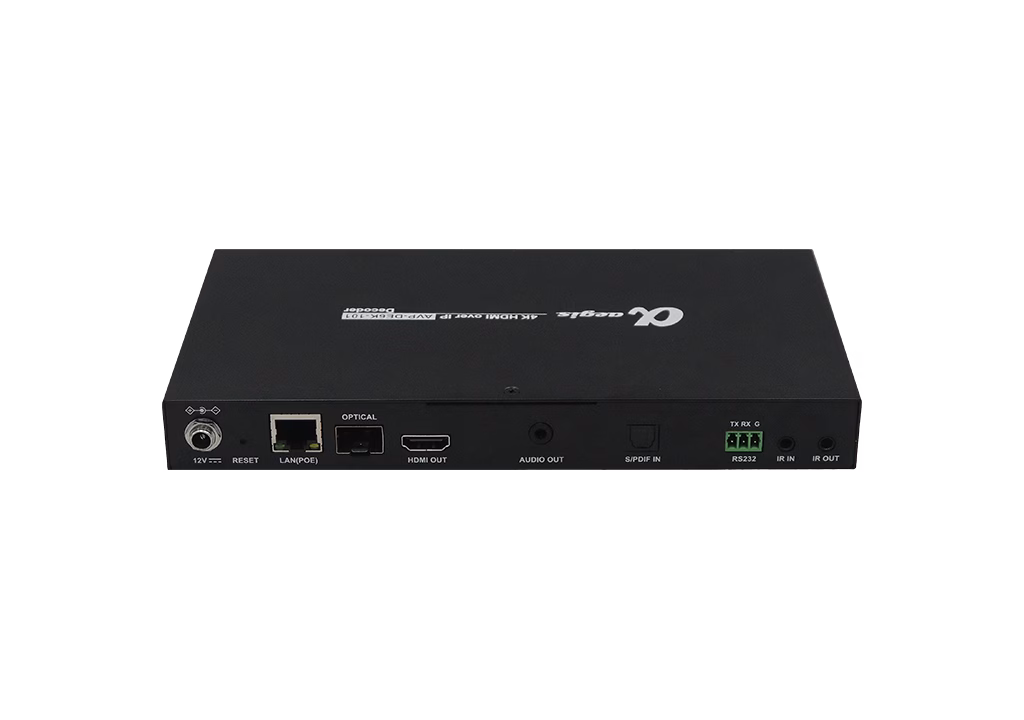

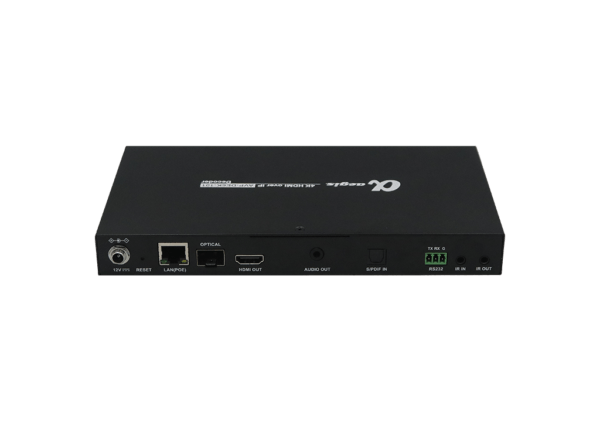

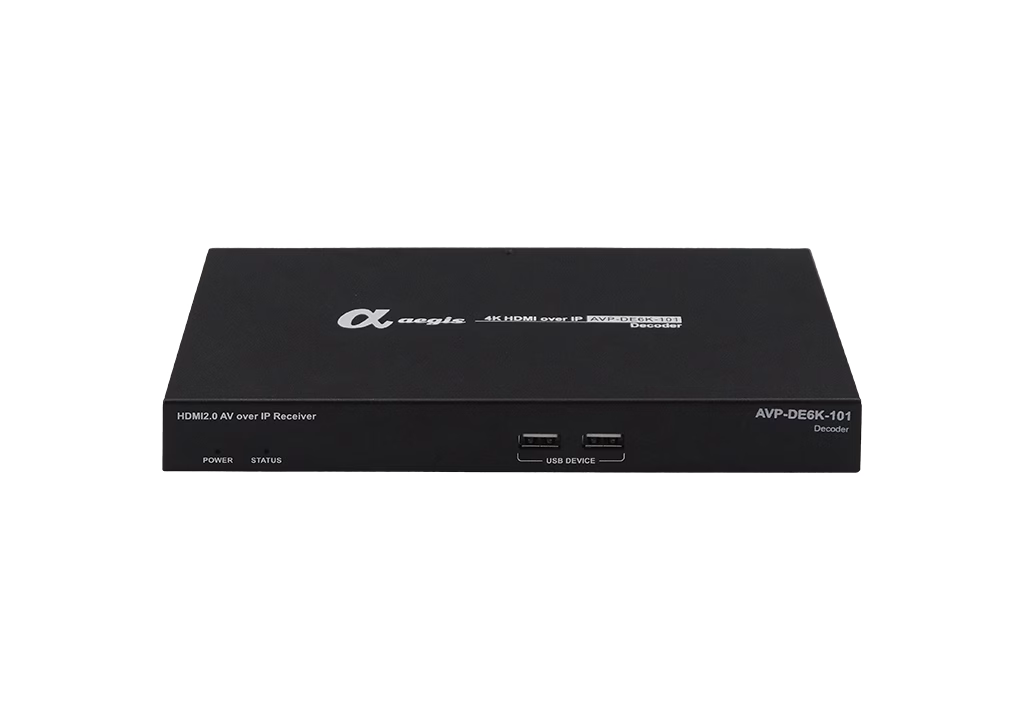

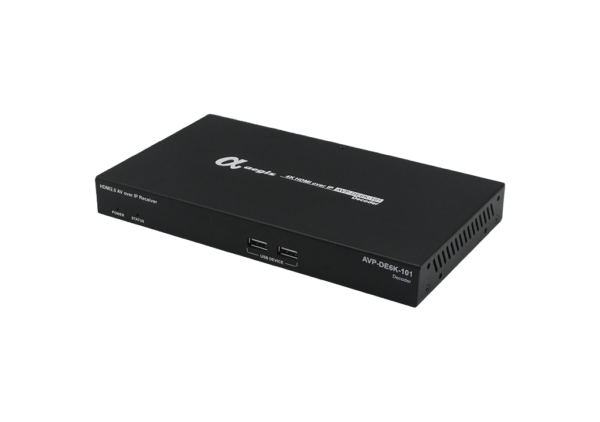

AVP-DE6K-101
Model No | AVP-EN6K-101 Encoder/Decoder |
Features | Details |
Input Port | 1 x HDMI 1 x LAN,1 x Optical |
Input Type | HDMI 2.0, HDCP 2.2 /2.3 JPEG2000 |
Input Resolutions | From 480p@60Hz to 4K x 2K@60Hz |
Input Signal | 0.5~1.0V p-p |
Output Port | 1 x HDMI 1 x LAN,1 x Optical |
Output Type | JPEG2000 / HDMI 2.0, HDCP 2.2/2.3 |
Output Resolution | *Large IP stream:from 480p@60Hz to 4K x 2K@60Hz *Small IP stream:360x240@15Hz / from 480p@60Hz to 4K x 2K@60Hz |
Local Output | 1 x HDMI UP to 3840 x 2160@60Hz 4:4:4 |
Encoding Data Rate (TCP/IP | 3840 x 2160@60Hz:650Mbps(avg)/900Mbps (max) |
End-to-End Time Latency | 1 fps |
Impendence | 100Ω |
Input DDC Signal | 5V P~P(TTL) |
Input Port | 1 x HDMI 1 x LAN ,1 x Optical ,1xS/PDIF In |
Input Format | PCM 2.0/2.1/5.1/7.1 Dolby True HD /Atmos DTS-HD Master Audio /DTS:X S/PDIF In:digital audio PCM2.0/5.1/7.1 Dolby True HD / Atmos DTS-HD Master Audio /DTS:X |
Analog audio input | 1x3.5mm stereo jack, 2 channels; tip (L), ring (R), sleeve (ground) |
Output Port | 1 x LAN 1 x Optical ,1xS/PDIF Out 1xHDMI |
Output Format | S/PDIF Out:digital audio PCM 2.0/2.1/5.1/7.1 Dolby True HD /Atmos DTS-HD Master Audio /DTS:X PCM 2.0/2.1/5.1/7.1 Dolby True HD /Atmos DTS-HD Master Audio /DTS:X 1x3.5mm stereo jack, 2 channels; tip (L), ring (R), sleeve (ground) |
Analog audio output | 1x3.5mm stereo jack, 2 channels; tip (L), ring (R), sleeve (ground) |
KVM | USB Host-B type x 1 USB A type x 2; support 5V output |
Control Method | AVP-CBS2K-101, HDMI over IP Console (PC Configuration Software), AGS-iTOUCH(iPad software) |
ESD Protection | Human body model: *±8kV (air-gap discharge) *±4kV (contact discharge) |
Surge Protection Power Supply | Voltage: ±1kV 12 V 1A DC |
Power Consumption | 7W (Max.) 8.5W (Max.) |
Product Dimension | 220mm X 130.2mm X 25mm ((L) 8.7" X (W) 5.1" X (H) 1.0") |
Product Weight | 0.74kg/1.63lbs |
Operation Temperature | 0°C~45°C (32°F~113°F) |
Storage Temperature | 20°C~70°C(-4°F~140°F) |
Humidity | 10%-90% (Non-Condensing) |
