TAP-AV-1003

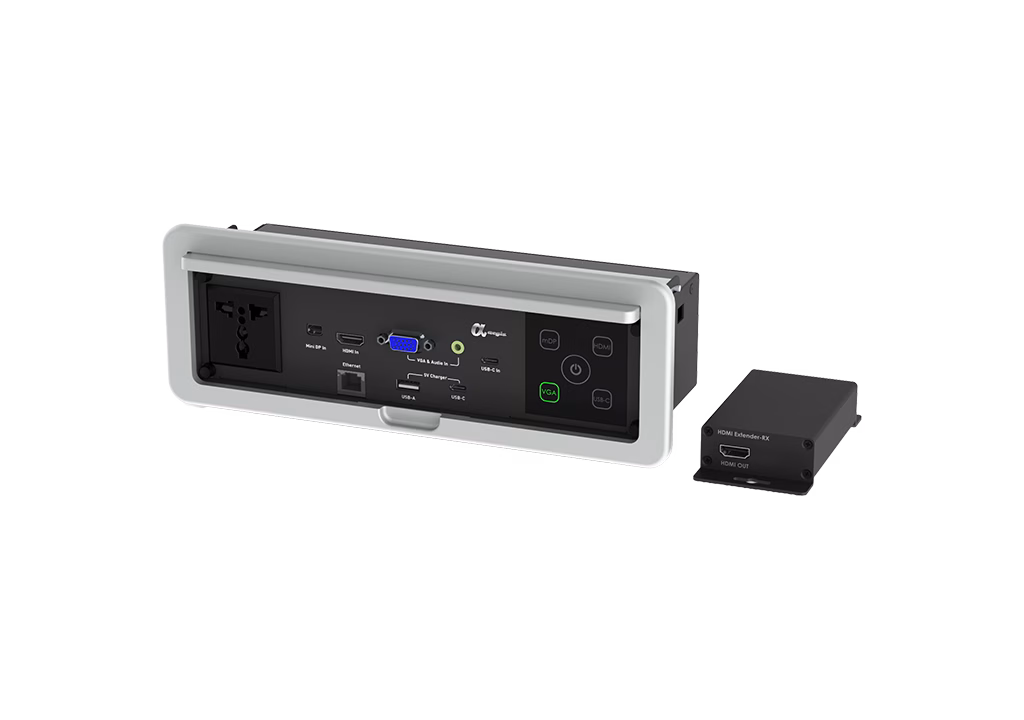

TAP-AV-1003 can switch four different signal sources to HDMI signal, which covers analog and digital audio and video signals (VGA+3.5mm audio, mini DisplayPort, HDMI and USB-C), the output resolution is up to 4K2K@60Hz and The maximum transmission distance is 60M. Users can charge the device through USB-A and USB-C (5V2A). This model has the function of automatic signal source detection, which can automatically detect and display the last input signal source, and can also press the touch panel to switch the signal source. The host has an HDMI output port that supports local output to display images. The assembly method of this signal switch is very flexible. It can be embedded into the table using the lock screw assembly method, which makes this machine easy to match with existing furniture. The high-performance and elegant model is a rare one on the market. Multi-signal switcher.
TAP-AV-1003 can switch four different signal sources to HDMI signal, which covers analog and digital audio and video signals (VGA+3.5mm audio, mini DisplayPort, HDMI and USB-C), the output resolution is up to 4K2K@60Hz and The maximum transmission distance is 60M. Users can charge the device through USB-A and USB-C (5V2A). This model has the function of automatic signal source detection, which can automatically detect and display the last input signal source, and can also press the touch panel to switch the signal source. The host has an HDMI output port that supports local output to display images. The assembly method of this signal switch is very flexible. It can be embedded into the table using the lock screw assembly method, which makes this machine easy to match with existing furniture. The high-performance and elegant model is a rare one on the market. Multi-signal switcher.
4KCHANGER series product options:
- Allow 4 different source, VGA+5mm audio, mini DisplayPort, HDMI input and USB-C convert to HDMI via Cat6 cable connect to the Receiver.
- Support distance up to 60M.
- User is able to charge their notebook or mobile phone through USB-A and USB-C(5V2A)
- Support Ethernet by-pass function.
- Input source auto-detect function
- 110V-240V Power Socket (Pass through)
- Resolution is up to 4K2K@60Hz.
- LED light indication with touch panel.
- One HDMI Local out
TAP-AV-1003
| Model No | TAP-AV-1003 |
| Input Ports - Transmitter | HDMI, M/DP, VGA+3.5mm, TYPE-C |
| Output Ports | RJ45, HDMI (Local Out) |
| Input Ports - Receiver | RJ45 |
| Output Ports | HDMI |
| HDMI Max bandwidth | 297MHz |
| HDMI Max baud rate | 6Gbps |
| HDR Support | YES |
| HDMI Resolution | 480P/720P/1080P@24Hz/30Hz/50Hz/60Hz, up to 4K@60Hz Supports1080P@120Hz,/3D. |
| HDMI Audio format | Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM |
| Distance | 4K /Cat-6@60M |
| Power | AC 100~240V / DC24V 1.5A |
| Consumption | TAP-AV-1003 ≤ 0.91mA@24V |
| Output cable length | 4K/AWG 30 ≤ 2m |
| Transmission delay | <3ms |
| Product Dimension | Transmitter: (L) 10.5in X (W) 3.76in X (H) 3.76in (269mm X 95.5mm X 95.4mm) Receiver: (L) 4.3in X (W) 2.17in X (H) 0.98in (110mm X 55mm X 24mm) |
| Product Weight | Transmitter: 1280g Receiver: 110g |
| Operation Temperature | 23℉ – 104℉ (-5℃ - 40℃) |
| Storage Temperature | 5℉ – 131℉ (15℃ - 55℃) |
| Humidity | Operation: 5% - 85% RH (No Condensation) Storage: 5% - 95% RH (No Condensation) |
| Unit Number | Description |
| 4KCHANGER-TC1 | 4KCHANGER Table Connective with input of Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, switch button, single HDMI output |
| 4KCHANGER-TC2 | 4KCHANGER Table Connective with a Extender for distance extension and connection via 30M RJ45 Cat. 6 ; input : Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, switch button, single HDMI output |
| TAP-AV-1003 | 4KCHANGER Table Connective with input of Type C, VGA+3.5mm Audio, Mini DP & HDMI, auto-detect sources, TOUCH PANEL, single HDMI output, Local Output, PoC; with an extender 60M |
| TAP-AV-1004 | TABLE CONNECTIVITY (MDP/HDMI/VGA+3.5/USB TYPE C) NON RJ45 JACK with switch button, no cover lid, no extender box |
