aegis 4KPROIP series supports UltraHD 4K/60 Hz (4:4:4) over a 10Gb Ethernet switch using standard CAT6 cables that source sent from HDMI can up to 100 meters. Delivering zero compression 4K and latency, the 4KPROIP provides supreme quality of audio and video outputs. As an alliance member of SDVoE, aegis 4KPROIP solution offers an easy and flexible distributions that bring multiple information sources to one or many displays. The multi-point distribution functions includes: Matrix switching, Video Wall, MultiView and Point to Point. 4KPROIP also has IR controlling feature and RS232 serial port for giving commends over the network. 1Gb Ethernet port allows direct connect to control software device as a mobility feature. The USB 2.0 as an option feature that works as a KVM function over the network. 4KPROIP also supports wide range of up-scaling and down-scaling for resolutions up to 4K/60 (4:4:4).
The function of the 4KPROIP-FOC-DE decoder (Receiver) is to decoding the received information from 10G Ethernet traffic to be displayed. It strips off the encryption and reformates the audio and video information for display via HDMI video output while plays audio out from Audio output port.
4KPROIP-FOC-DE provides streaming that carries 4K/60Hz (4:4:4) audio, video, IR, RS-232 over an IP network in one-to-one or many-to-many configurations with Fiber that supports 10KM, 20KM, or 40KM range.
4KPROIP-CBS, the control of the 4KPROIP system, is also available.
4KPROIP series product options:
- Zero Compression & Zero frame latency
- Supports UltraHD 4K/60 (4:4:4), HDMI 2.0 & HDCP 2.2
- 4K/60Hz Over 10G Copper
- RS-232 Serial Port (Bidirectional)
- IR (Bidirectional)
- Scalable : wide range of down-scaling & up-scaling
- 1Gb network port
- Standard Industrial Cat.6 Cable up to 100M
- Line Audio Out
- Visual Capability : Matrix , Video Wall, MultiView, Point to Point
- Rack & Under Table Mounting

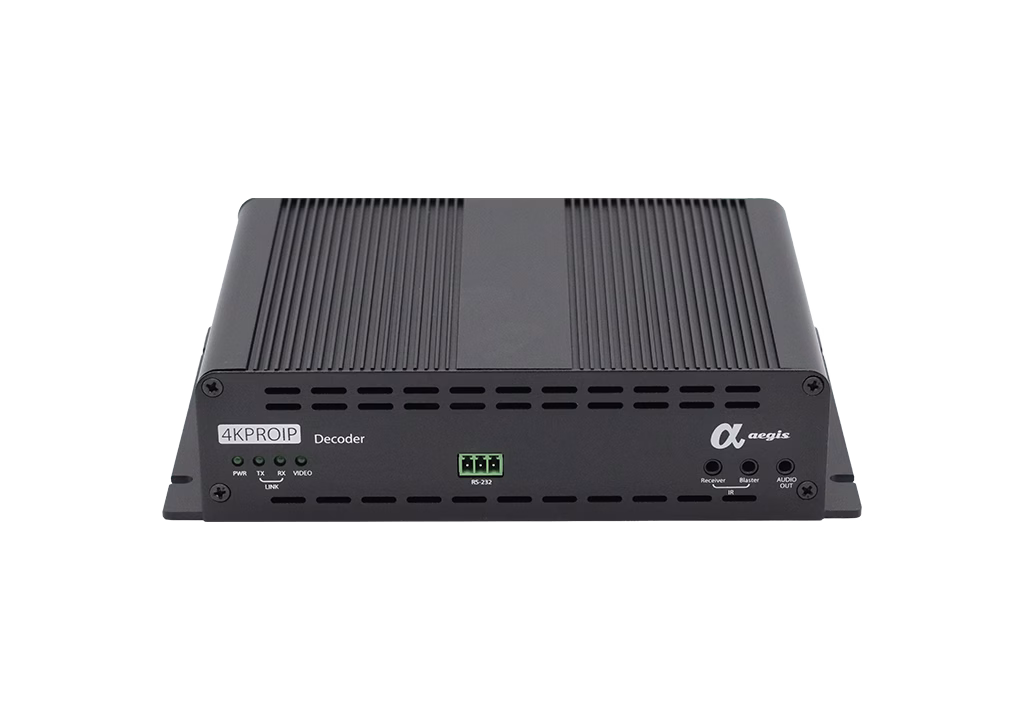

4KPROIP-FOC-DE
Model No | 4KPROIP-FOC-DE |
Features | Details |
Input Ports | SFP+: SFP+ Socket X 1 Infrared: 3.5mm Stereo Jack X 1 via Receiver 1G Ethernet: RJ45 Jack X 1 Power: Locking DC Jack X 1 |
Output Ports | Video: HDMI Jack X 1 Audio: 3.5mm Stereo Jack X 1 Infrared: 3.5mm Stereo Jack X 1 via Blaster RS232: Phoenix 3 Pin Female X 1 |
HDMI Version | HDMI 2.0 |
HDCP Version | HDCP 2.2 |
Resolution | Up to 4KX2K/60Hz |
Deep Color | Up to 36 bit |
Audio | HDMI: Up to 8 Channels (7.1) Analog: 2.1 Channels (Input & Output) |
Infrared | 20~60 KHz Frequency |
RS232 | Up to 115.2kbps |
Distance | Up to 40km / 24 mi |
Power | 100~240V, 12VDC / 2.0Amp. |
Consumption | 24 Watt Max. |
Product | Dimension: 8.3in X 5.7in X 2.0in ( L X W X H ) 210mm X 146mm X 52mm ( L X W X H ) Weight: 1.69 lb 760g |
Package | Dimension: 258mm X 198mm X 97mm Weight: 1247g |
Temperature | Operation: 32℉ - 104 ℉ 0 ℃ - 40 ℃ Storage: 32℉ - 176 ℉ 0 ℃ - 80 ℃ |
Humidity | Operation: 20% - 90% (Non-Condensing) Storage: 20% - 90% (Non-Condensing) |
Package Content | 4KPROIP-FOC-DE Decoder X 1 PCS Universal Power Adapter X 1 PCS Infrared Blaster Cable X 1 PCS Infrared Receiver Cable X 1 PCS User Manual X 1 PCS |
Unit Number | Description |
4KPROIP-CAT-EN | 4KPROIP Copper Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE |
4KPROIP-CAT-DE | 4KPROIP Copper Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE |
4KPROIP-CAT-EN-U | 4KPROIP Copper Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE & USB |
4KPROIP-CAT-DE-U | 4KPROIP Copper Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE & USB |
4KPROIP-FOC-EN | 4KPROIP Fiber Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE , 10GbE SFP+ |
4KPROIP-FOC-DE | 4KPROIP Fiber Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+ |
4KPROIP-FOC-EN-U | 4KPROIP Fiber Encoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+ & USB |
4KPROIP-FOC-DE-U | 4KPROIP Fiber Decoder with HDMI, Infrared, Analog Audio, RS-232C, 1 GbE, 10GbE SFP+ & USB |
4KPROIP-CBS | Control Software Box |
