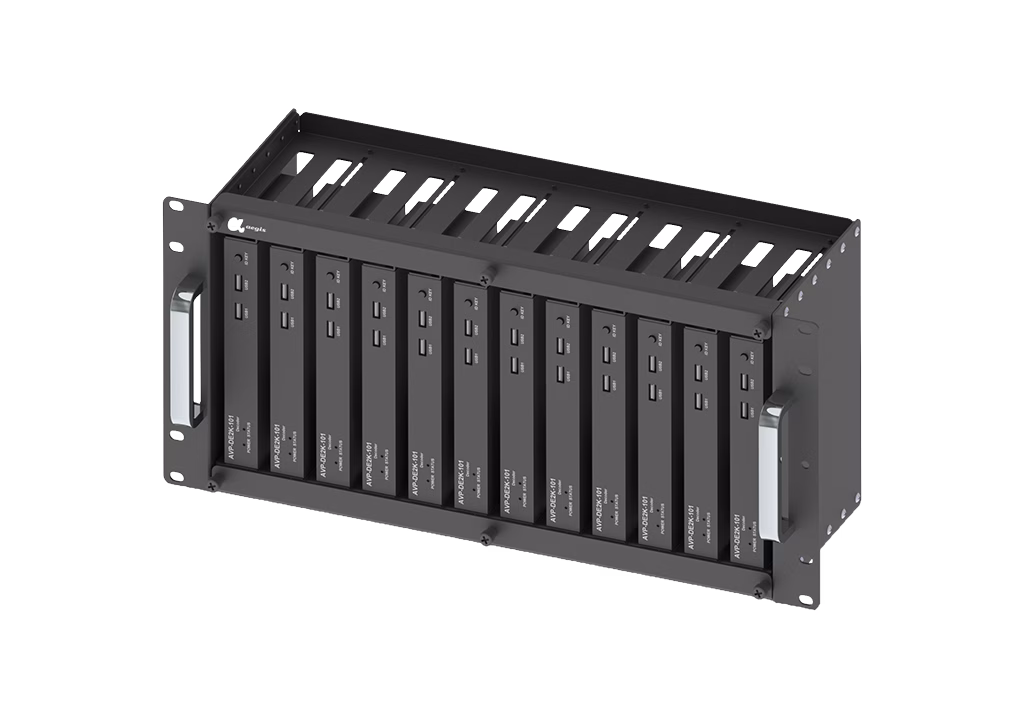

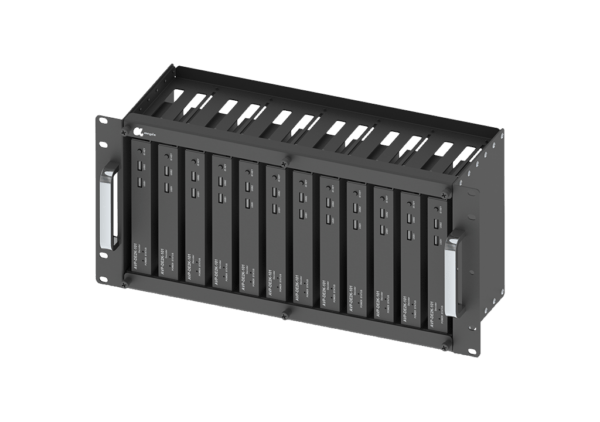

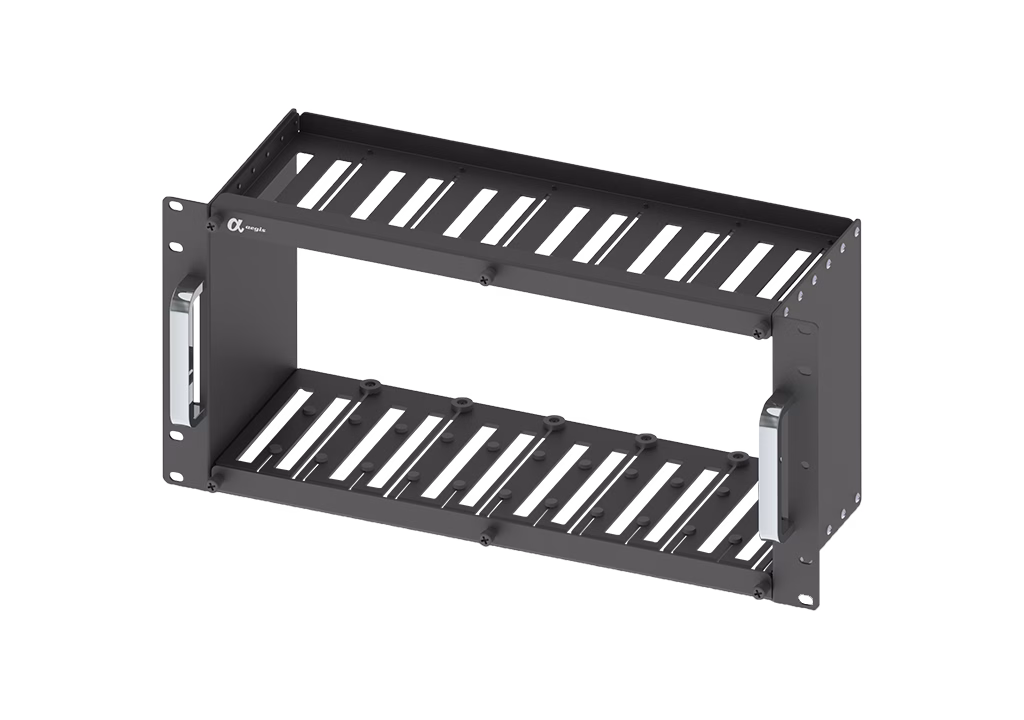

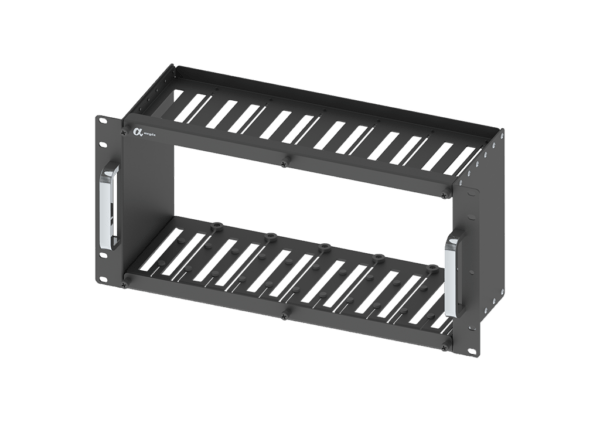

aegis ACC-RACK-1000 is a 5U standard rack designed specifically for 1080P AV over IP series equipment. It can accommodate up to 12 encoders, decoders, or controllers simultaneously and is compatible with 19-inch standard cabinet installation. It features a flexible four-way mounting design that allows adjustment of device installation direction according to actual needs, complemented by L-shaped brackets for secure device mounting. The thoughtful ventilation design ensures proper device cooling, while comprehensive cable management space enables neat and organized installation. Manufactured using eco-friendly materials and compliant with RoHS environmental standards, it serves as an ideal rack solution for building professional video systems.
◎ Supported Devices
– AVP-EN1K-100/AVP-DE1K-100、AVP-EN2K-101/AVP-DE2K-101及AVP-CBS2K-101。
◎ Standard 19-inch 5U rack specification
◎ Accommodates up to 12 devices
◎ Four-way flexible mounting design
◎ L-shaped brackets for secure mounting
◎ Front or rear mounting options
◎ Optimized cooling ventilation design
◎ Comprehensive cable management space
◎ Eco-friendly manufacturing materials
◎ RoHS environmental standard compliant
◎ Durable rack structure
◎ Standard screw mounting design
◎ Complete mounting accessories included
◎ Front handle design for easy transport
| Package Contents | |
| 1 x ACC-RACK-1000 Chassis | 12 x Blank Plates |
| 2 x Handle Mounting Bracket | 1 x Assembly Screws Pack |
| Weight & Dimensions | |
| Rack Units / Wall Box | 5U |
| Height With / Without Feet | 222mm ; 8.74” / 222mm ; 8.74” |
| Width With / Without Brackets | 468mm ; 18.42” / 410mm ; 16.14” |
| Depth With / Without Handles | 154mm ; 6.06” / 150mm ; 5.9” |
| Weight (Chassis with Plates) | 3.8kg / 8.37lbs |
